AF16S Lindapter - Type AF High Friction Clamp M16 Short Tail Hot Dip Galvanized

$51.48Per: EACH


Size
Tail Length
Material/finish

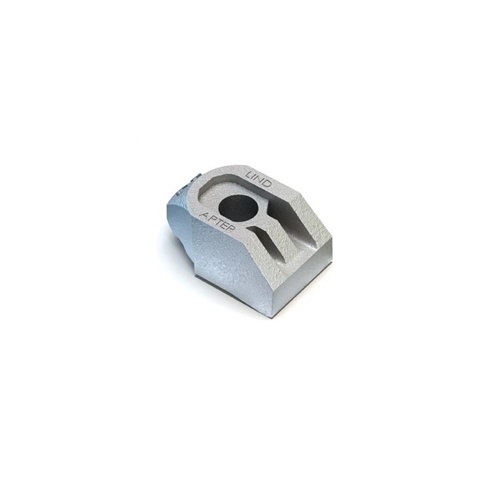

The Type AF girder clamp is used to achieve a fast steelwork fixing connection where high load capacities are present in either tensile, frictional or combined load directions. It has a recessed top to hold the bolt head captive while the nut and washer are tightened down using only one tool, alternatively use a Type AFW washer to convert the recess to a flat top. The skirt on the underside of the clamp abuts the edge of the beam flange and prevents the clamp rotating during installation. Manufactured from SG iron with a hot dip galvanised finish to provide high performance and anti-corrosion protection.

NEW Independently fire tested in accordance with ISO 834 for a duration of 120 minutes.

Technical Specification

  Bolt Safe Working Loads   Dimensions
Product Code Size Z Property Class4) Tensile / 1 Bolt (FOS 5:1) Slip1) / 2 Bolts (FOS 2:1) Tightening Torque* Tail Length Y X T T Width
        Painted Steelwork2) Galvanised Steelwork   short v1 medium v2     Type AF Type AF with AFW
      kN kN kN Nm mm mm mm mm mm mm mm
AF12 M12 8.8 8.5 3.4 3.9 90 5 12.5 27 27 17 22 39
AF16 M16 8.8 16.0 8.0 10.0 240 8 15 35 37 22 27 49
AF20 M20 8.8 26.3 13.0 16.0 470 10 18 40 39 25 31 56
AF24 M24 8.8 40.0 24.0 30.0 800 15 30 48 60 32 42 82
AF12 M12 10.9 10.0 4.0 5.2 130 5 12.5 27 27 17 22 39
AF16 M16 10.9 19.5 11.0 12.0 300 8 15 35 37 22 27 49
AF20 M20 10.9 30.0 20.0 25.0 647 10 18 40 39 25 31 56
AF24 M24 10.9 62.53) 28.0 35.0 1000 15 30 48 60 32 42 82

1) Slip resistant values calculated against movement exceeding 0.1mm.

2) Shot blast and painted steelwork.

3) 3.2:1 Factor of Safety.

4) For ease of installation when using 10.9 bolts Lindapter recommends using fastener assemblies to EN 14399-1.

* Torque figures based on bolts / setscrews in an unlubricated condition.

  For Characteristic Resistances when designing a connection to Eurocode 3, please refer to DoC No.104

  For Characteristic Resistances when designing a connection to Eurocode 3, please refer to DoP No.004

• Independently tested for dynamic load applications to EN 1993-1-9.

SKU AF16S
Brand Lindapter
Shipping Weight 0.4730kg
Size M16
Material/finish Hot Dip Galvanized
Tail Length Short
