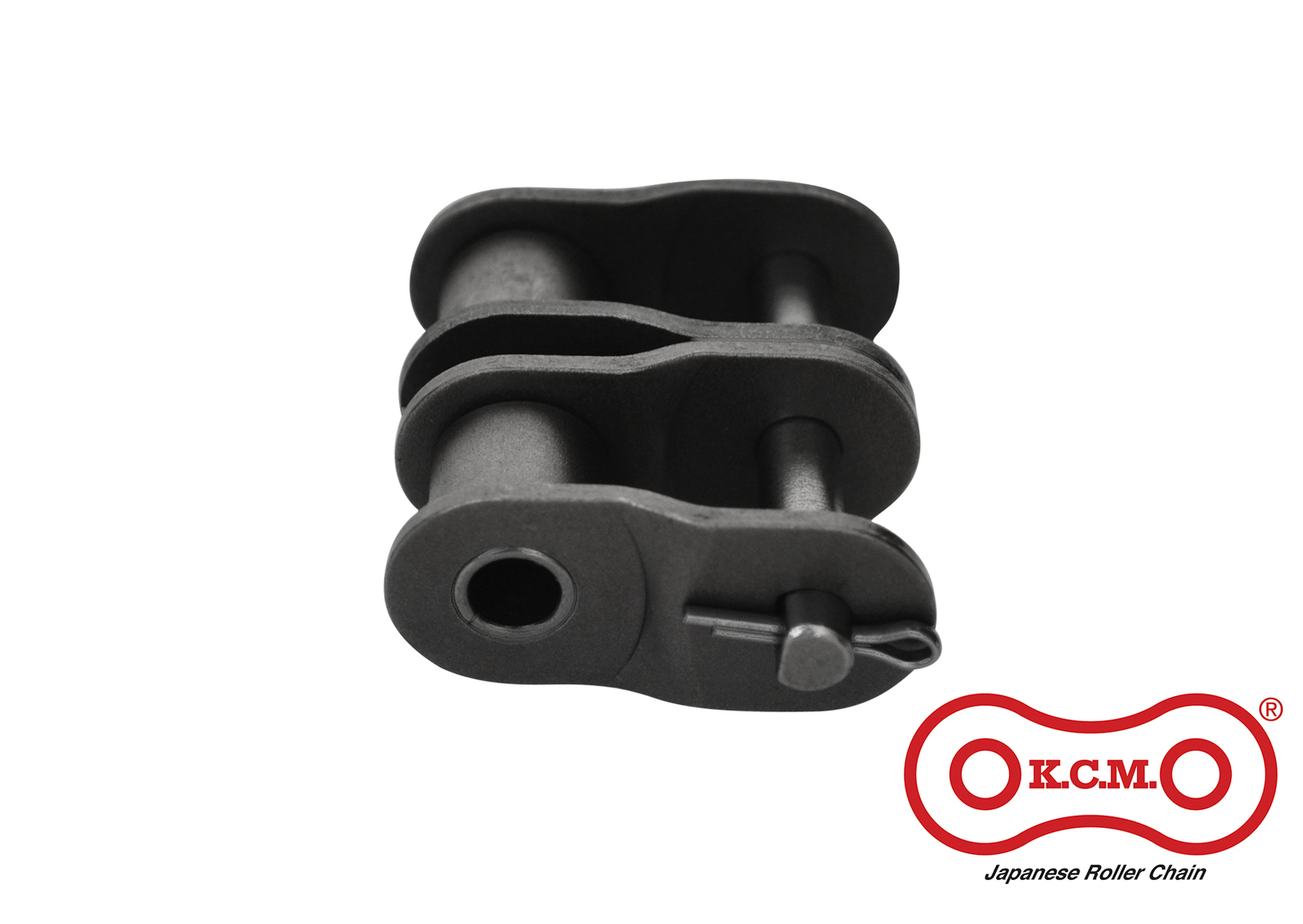

06B-2OL KCM Premium Offset / Half Link 3/8 Inch Pitch BS Duplex

$15.42Per: EACH
(Full Pack Contains: 1)



SKU 06B-2OL-KCM
Brand KCM
Grade Premium
Norm. ISO-B, ISO 606-B
(P) Pitch (mm) 9.525 (3/8")
(W) Width Between Inner Pitch (mm) 5.72
(D) Roller Diameter (mm) 6.35
(d) Pin Diameter (mm) 3.28
(L) Offset (mm) 25.4
(T) Link Plate Thickness (mm) 1
(H) Link Plate Height (mm) 8.1
(L²) Pin (mm) 23.85

Be The First To Review This Product!
