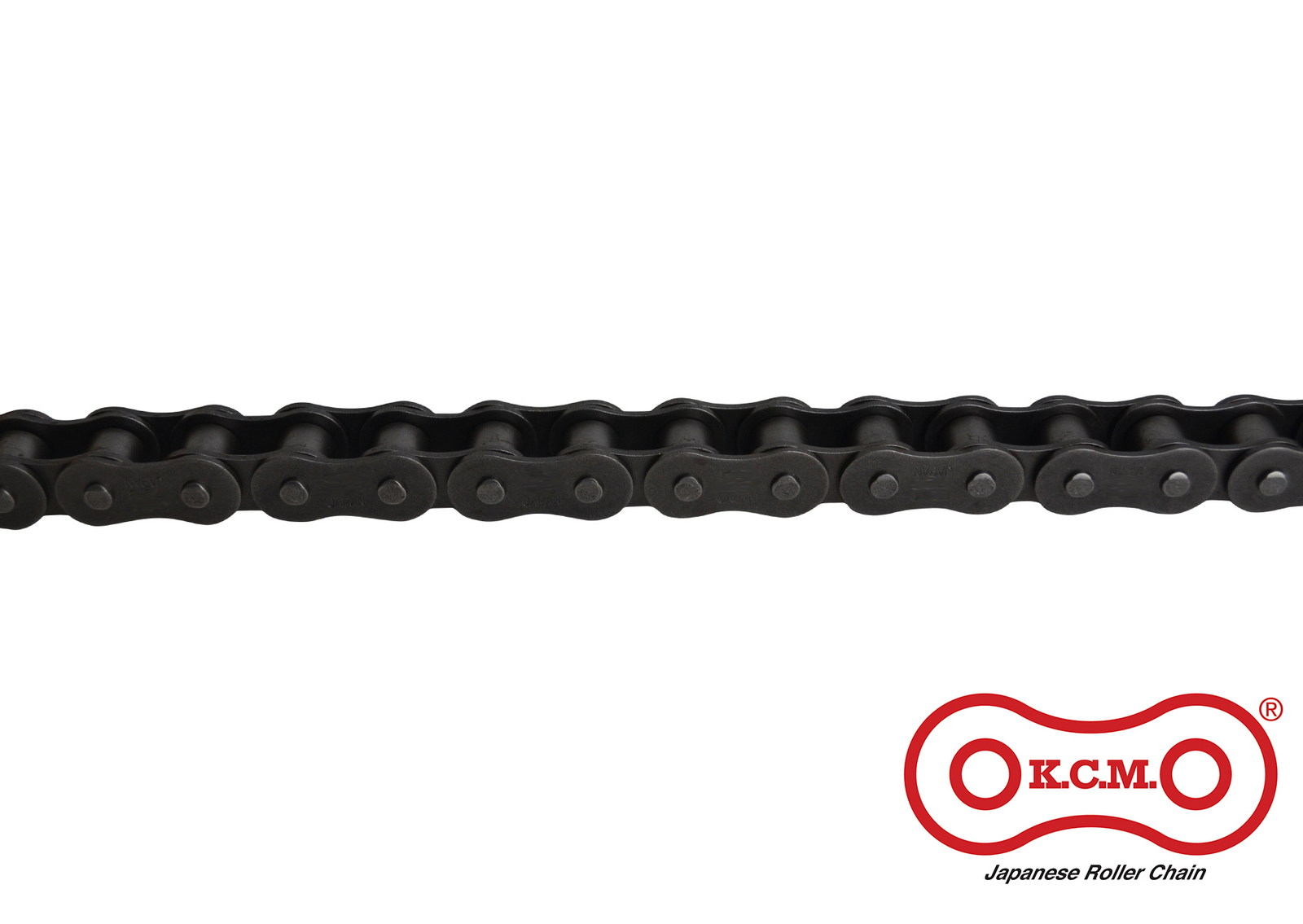

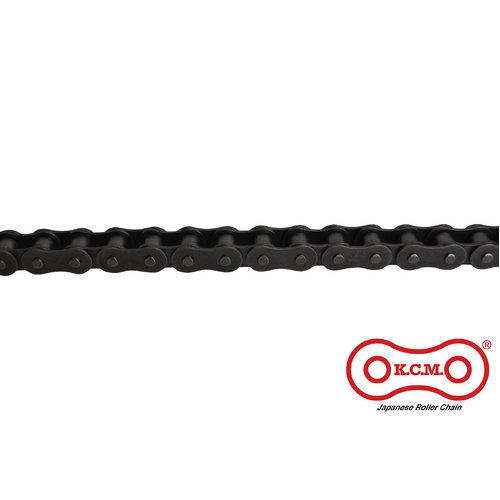

100-1 KCM Premium Roller Chain 1-1/4 Inch Pitch ASA Simplex - Price per 10' Roll

$442.75Per: PACK
(Full Pack Contains: 1)



SKU 100-1-KCM
Brand KCM
Shipping Weight 1.1666kg
Grade Premium
Norm. ANSI, JIS
(P) Pitch (mm) 31.75 (1-1/4")
(W) Width Between Inner Pitch (mm) 19.05
(D) Roller Diameter (mm) 19.05
(d) Pin Diameter (mm) 9.54
(A) Pin (mm) 20.1
(B) Pin (mm) 23.05
(A+A) L¹ (mm) 40.2
(A+B) L¹ (mm) 43.15
(L) Offset (mm) 45.05
(T) Link Plate Thickness (mm) 4
(H) Link Plate Height (mm) 28.9
