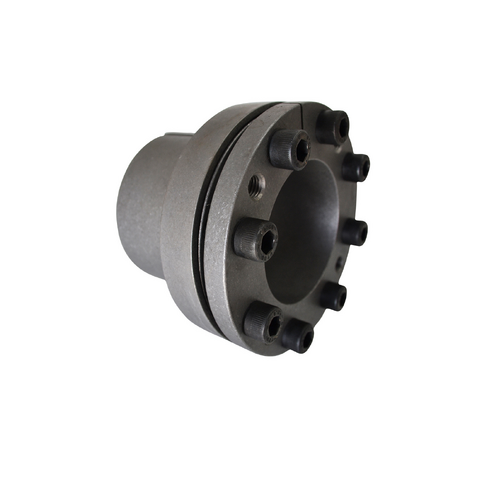

18X26mm Type 02 Locking Assembly Flanged Self Centering

$66.83



SKU REACH02-18
(d) Inside Ø (mm) 18
(D) Outside Ø (mm) 26
Dimension D¹ (mm) 42
Dimension L¹ (mm) 18
Dimension L² (mm) 31
(L) Assembled Length (mm) 44
Locking Unit Type Type 02
No. Of Clamping Screws 4
Screw Size M4X18
Screw Tightening Torque (Nm) 17
Dimension L³ (mm) 38
Dimension D² (mm) 47
