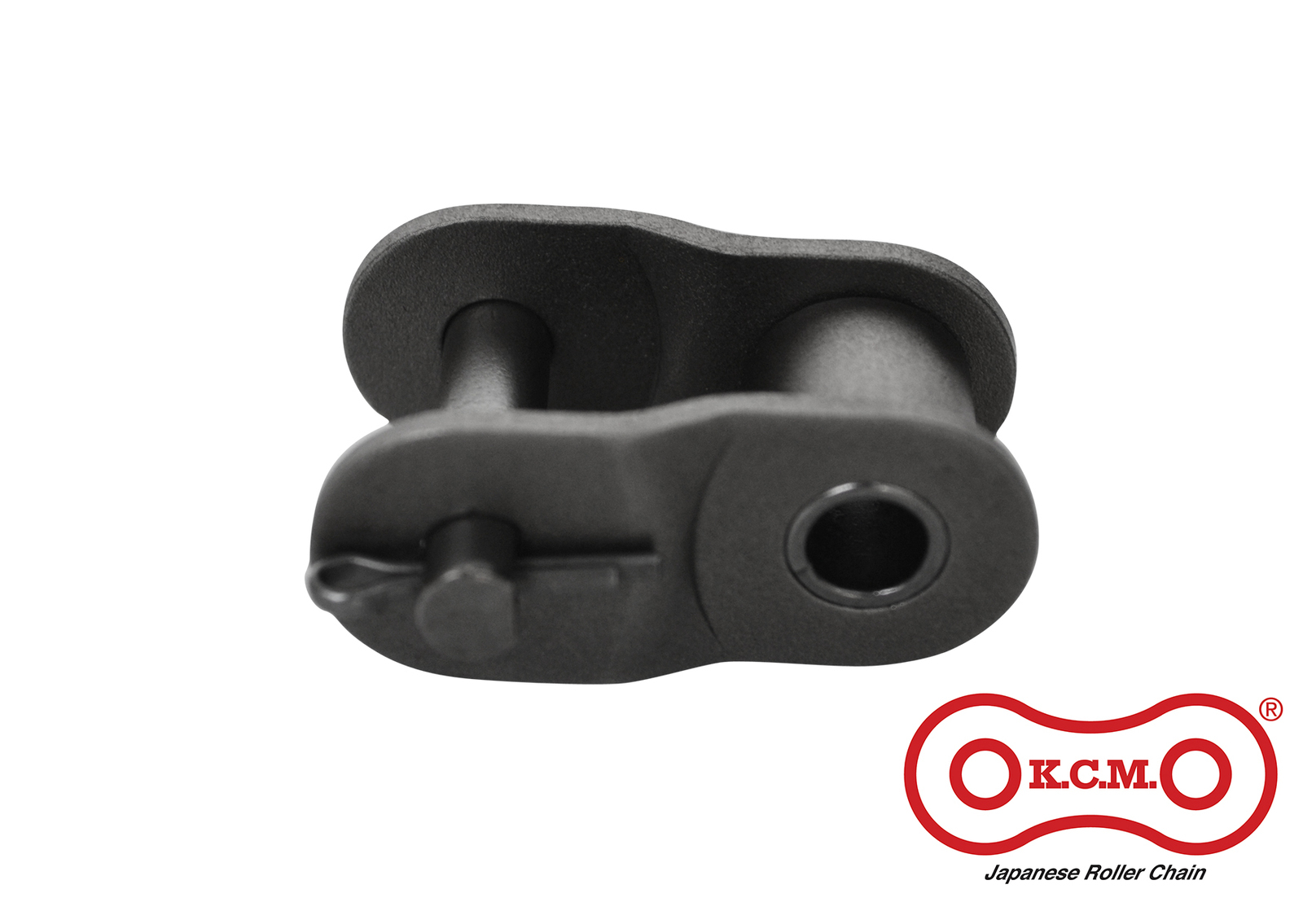

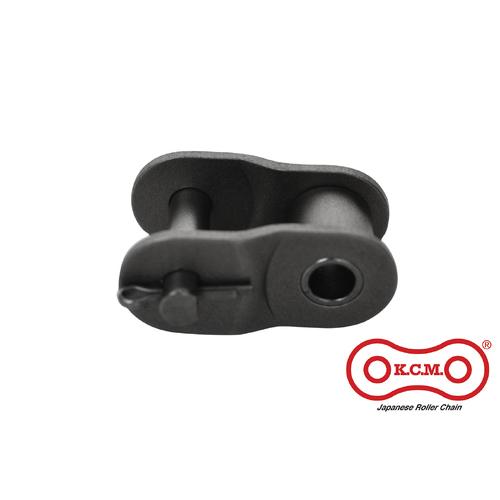

200-1COT-OL KCM Premium Connecting Link 2-1/2 Inch Pitch Cottered ASA Simplex

$379.45Per: EACH
(Full Pack Contains: 1)



SKU 200-1COT-OL-KCM
Brand KCM
Grade Premium
Norm. ANSI, JIS
(P) Pitch (mm) 63.5 (2-1/2")
(W) Width Between Inner Pitch (mm) 38.1
(D) Roller Diameter (mm) 39.68
(d) Pin Diameter (mm) 19.86
(A) Pin (mm) 39.3
(B) Pin (mm) 47.7
(A+A) L¹ (mm) 78.5
(A+B) L¹ (mm) 87
(L) Offset (mm) 89.2
(T) Link Plate Thickness (mm) 8
(H) Link Plate Height (mm) 58.4
