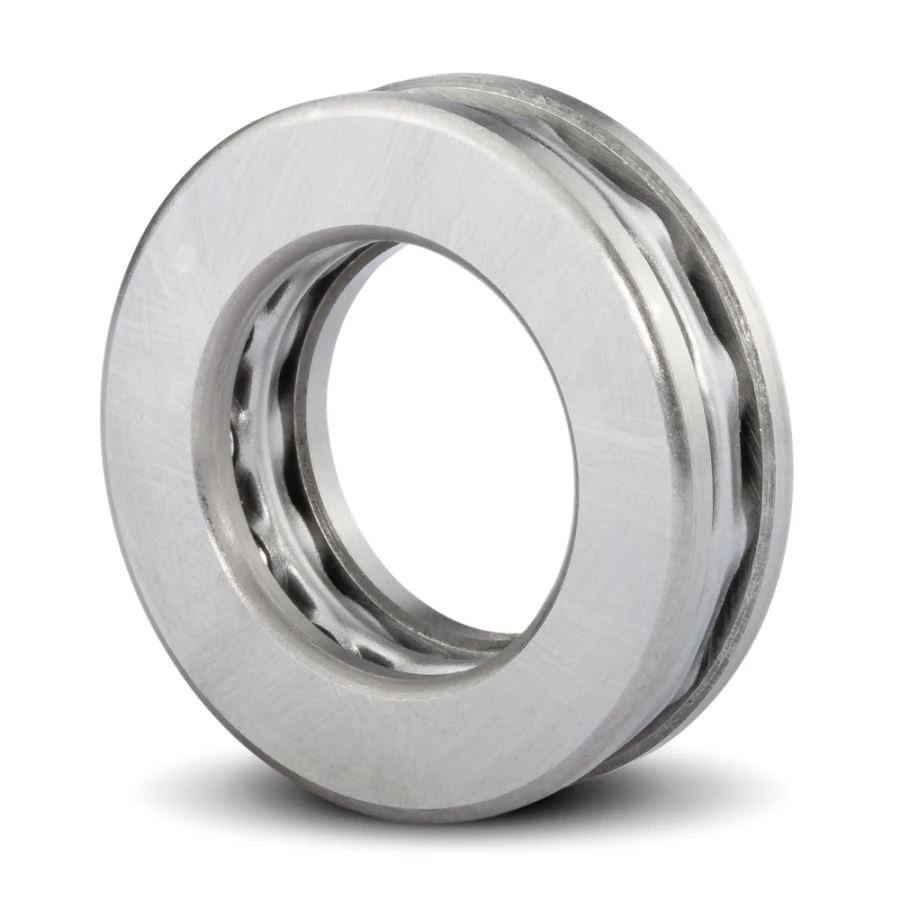

51109 Economy Axial Deep Groove Ball Thrust Bearing (45x65x14)

$25.18



Axial Deep Groove Ball Bearings
Axial deep groove ball bearings, also known as thrust ball bearings, are designed to support axial loads (loads parallel to the shaft) but not radial loads. They consist of bearing washers with raceway grooves and a set of balls arranged in a cage. These bearings are ideal for applications where the load acts along the axis of rotation, such as in vertical shafts or low-speed machinery.

Key Features:

  • Designed specifically for axial (thrust) loads only

  • Cannot support radial loads

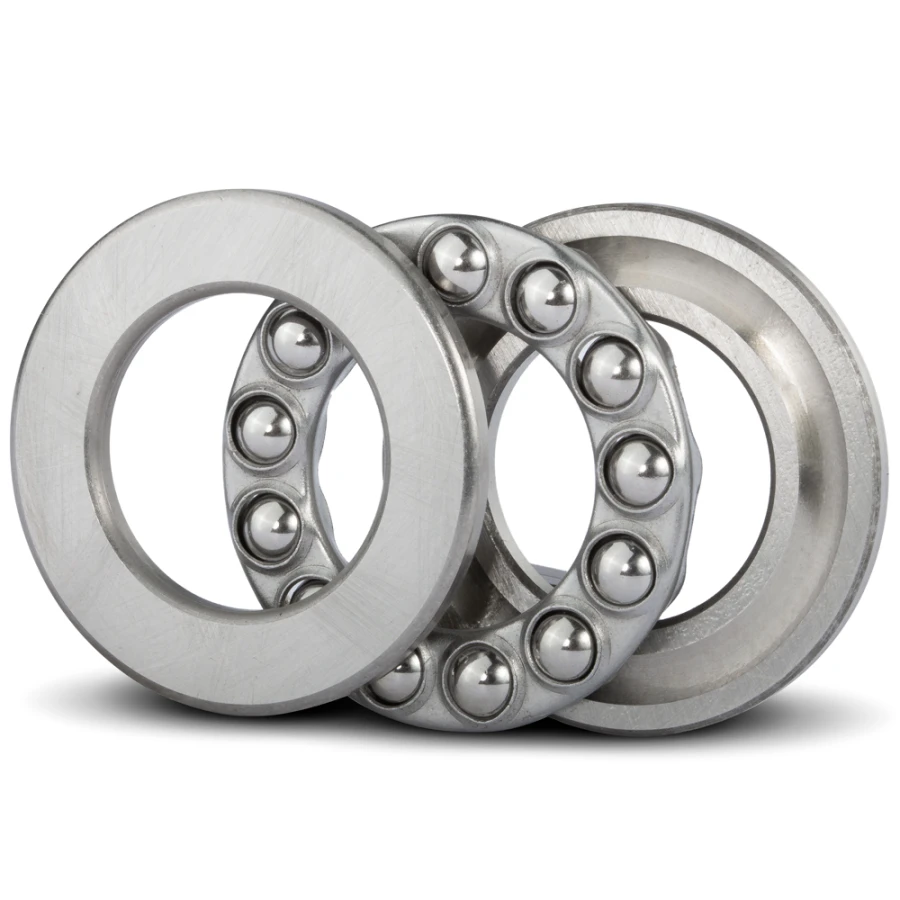

  • Consist of shaft washer, housing washer, and ball-cage assembly

  • Available as single-direction (one-way) or double-direction (both-way) types

  • Provide high axial load capacity with low friction

  • Suitable for low to moderate speed applications

  • Require accurate alignment of bearing washers

  • Commonly used in automotive clutches, machine tool spindles, and screw jacks

SKU 51109-ECO
Brand Craft
Shipping Weight 0.1400kg
Grade Economy

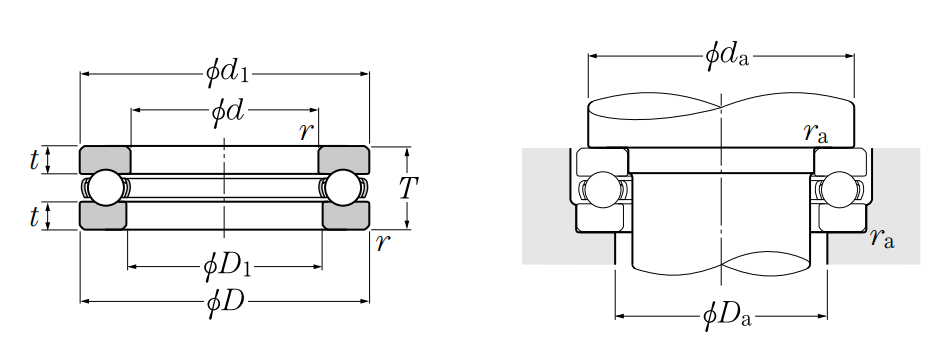

(d) Inside Ø (mm) 45
(D) Outside Ø (mm) 65
(B) Width (mm) 14
Precision Class P0 (Normal Precision)
Speed Rating V (Normal)
Seal Open
Ring Material Rolling Bearing Steel
Rolling Element Material Rolling Bearing Steel
Cage Material Sheet Steel
Type Of Lubrication Oiled
Lifetime Lubricated No
Max. Operating Temperature (deg. C) +150°C
Min. Operating Temperature (deg. C) ­­40°C
Norm. DIN 711
