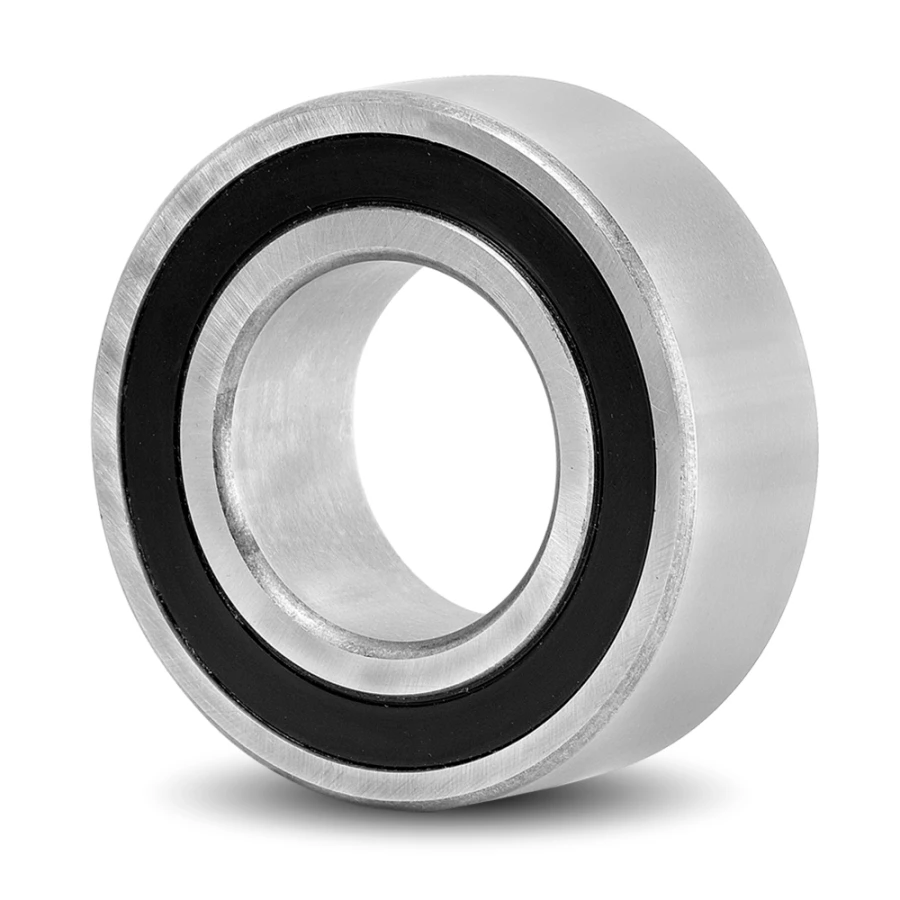

5205-2RS / 3205-2RS Economy Angular Ball Bearing Rubber Seals (25x52x20.6)

$37.16Per: EACH

Ready To Ship


Angular Contact Ball Bearings
Angular contact ball bearings are designed to support combined loads — both radial and axial — thanks to the contact angle between the balls and raceways. This design allows them to accommodate higher axial loads in one direction and makes them ideal for applications requiring high rigidity and precision, such as machine tool spindles and pumps.

Key Features:

  • Designed to handle combined radial and axial loads

  • Contact angle (typically 15°, 25°, or 40°) enables higher axial load capacity

  • Can support axial loads in one direction only (single-row type)

  • Paired bearings can support loads in both directions

  • Provide high rigidity and precision for demanding applications

  • Suitable for high-speed operation

  • Available in single-row, double-row, and four-point contact designs

  • Commonly used in machine tool spindles, gearboxes, and pumps

SKU 5205-2RS-ECO
Brand Craft
Shipping Weight 0.1800kg
Seal 2RS - Rubber Seals on both sides
Norm. DIN 628-3
Min. Operating Temperature (deg. C) -­­20°C
Max. Operating Temperature (deg. C) +120°C
Lifetime Lubricated Yes
Type Of Lubrication Grease
Cage Material Sheet Steel
Rolling Element Material Rolling Bearing Steel
Ring Material Rolling Bearing Steel
Grade Economy
Speed Rating V (Normal)
Precision Class P0 (Normal Precision)

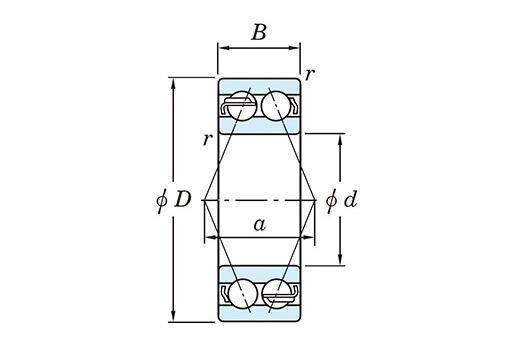

(B) Width (mm) 20.6
(D) Outside Ø (mm) 52
(d) Inside Ø (mm) 25
Modification Suffix Contact Angle 32°
Bore Cylindrical
