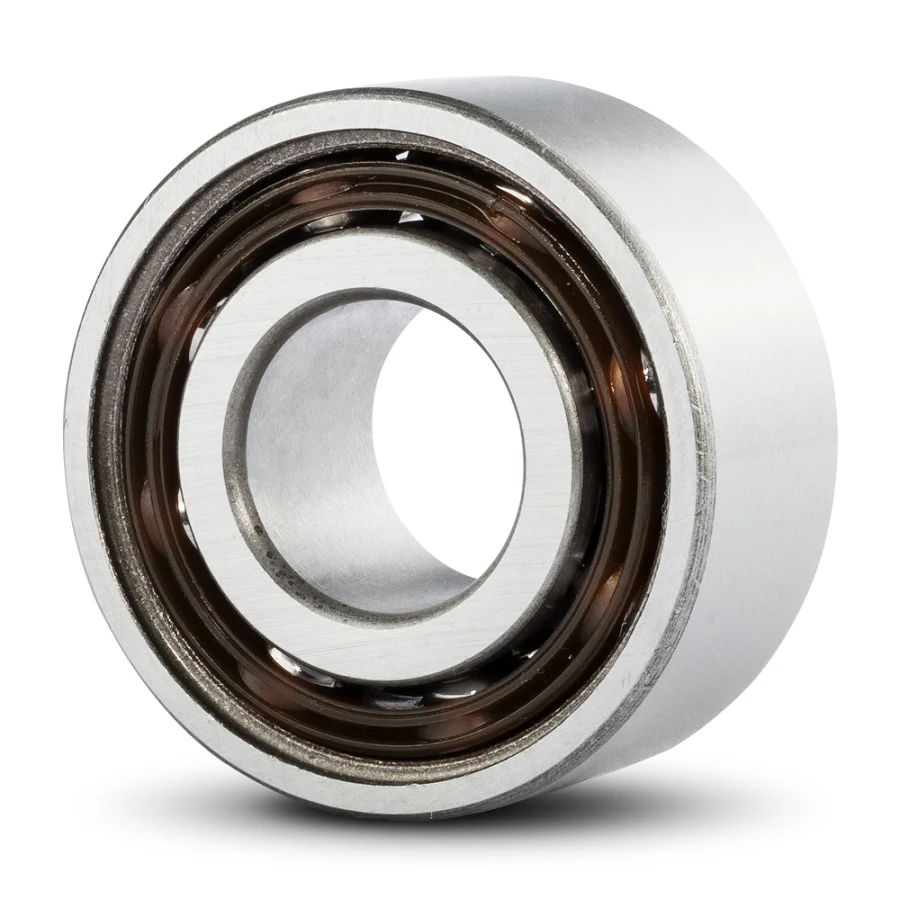

5304 / 3304 IJK Angular Ball Bearing Open (20x52x22.2)

$35.74



SKU 5304-IJK
Brand IJK
Shipping Weight 0.2200kg
Seal Open
Norm. DIN 628-3
Min. Operating Temperature (deg. C) -­­20°C
Max. Operating Temperature (deg. C) +120°C
Lifetime Lubricated No
Type Of Lubrication Oiled
Cage Material Sheet Steel
Rolling Element Material Rolling Bearing Steel
Ring Material Rolling Bearing Steel
Grade Premium
Speed Rating V (Normal)
Precision Class P0 (Normal Precision)
(B) Width (mm) 22.2
(D) Outside Ø (mm) 52
(d) Inside Ø (mm) 20
Modification Suffix Contact Angle 32°
Bore Cylindrical
