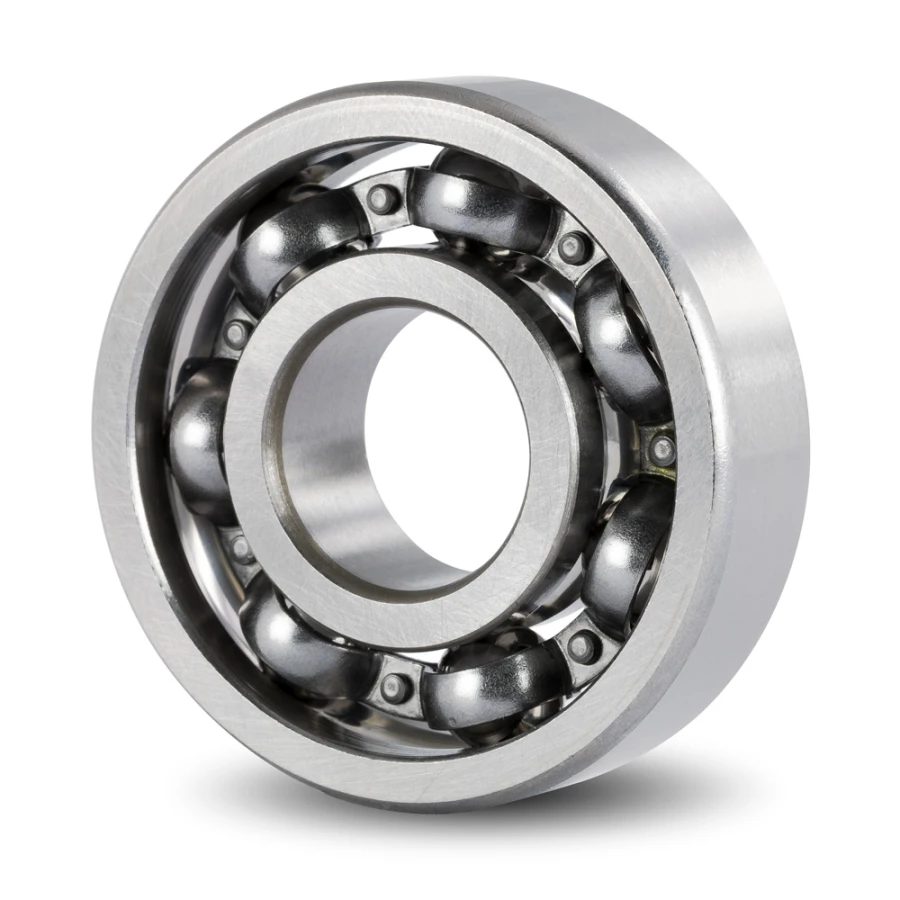

6224C3 KOYO Deep Groove Ball Bearing Open (120x215x40)

$1,027.35



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Express Shipping – StarTrack Courier service (Check StarTrack for transit times to your location)

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
Single row deep groove ball bearings are the most common type of rolling bearings and their use is widespread across many applications. The raceway grooves on both the inner and outer rings have circular arcs of slightly larger radius than that of the balls. In addition to radial loads, axial loads can be imposed in either direction. Because of their low torque, they are highly suitable for applications where high speeds and low power loss are required.
SKU 6224C3-KOYO
Brand KOYO
Shipping Weight 5.1000kg
Type Of Lubrication Oiled
Ring Material Rolling Bearing Steel
Precision Class P0 (Normal Precision)

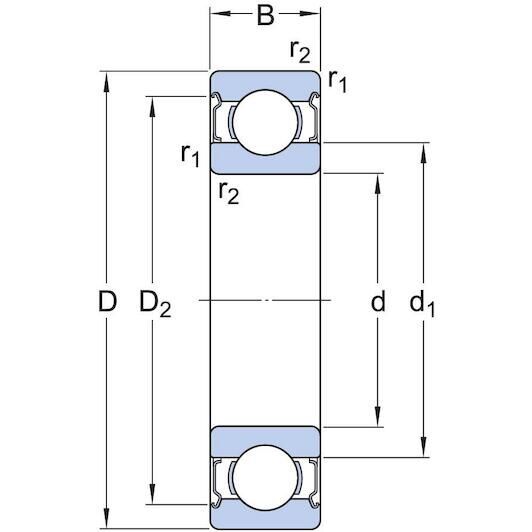

(d) Inside Ø (mm) 120
Grade Premium
Max. Operating Temperature (deg. C) +150°C
Cage Material Sheet Steel
Seal Open
(B) Width (mm) 40
Radial Internal Clearance C3 (Greater clearance than Normal)
Norm. DIN 625-1
Lifetime Lubricated No
Rolling Element Material Rolling Bearing Steel
Speed Rating V (Normal)
(D) Outside Ø (mm) 215
Bore Cylindrical
Min. Operating Temperature (deg. C) -­40°C
