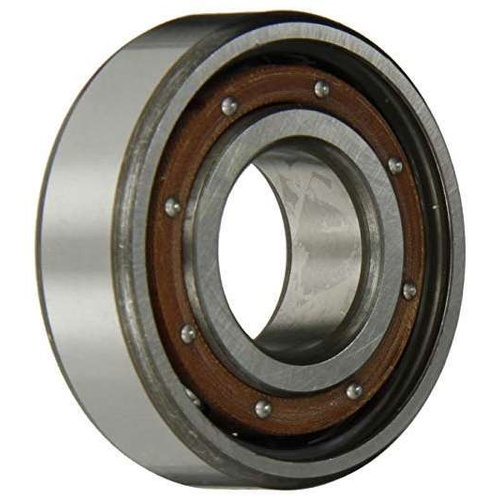

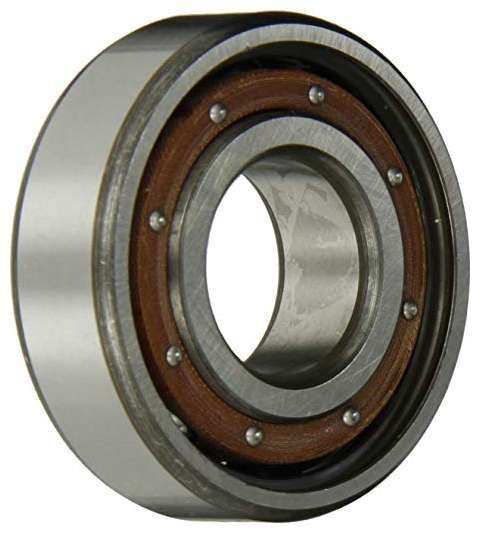

6304-TB-P6-C3 FAG Deep Groove Ball Bearing Open (20x52x15)

$133.28



Deep Groove Ball Bearings
Deep groove ball bearings are the most common type of rolling bearing. They have deep raceway grooves on both the inner and outer rings, which allow them to support both radial and axial (thrust) loads in both directions. Their simple design, low friction, and high-speed capability make them widely used in various applications, from electric motors to automotive components.

Key Features:

  • Simple, robust design with deep raceway grooves

  • Capable of handling radial and axial loads in both directions

  • Low friction and suitable for high-speed operation

  • Low maintenance and long service life

  • Available in open, shielded, or sealed configurations

  • Can be supplied with different lubrication options

  • Interchangeable and easy to mount or replace

  • Commonly used in electric motors, pumps, gearboxes, and appliances

SKU 6304TBP63-FAG
Brand FAG
Shipping Weight 0.1530kg
Seal Open
Norm. DIN 625-1
Min. Operating Temperature (deg. C) -­40°C
Max. Operating Temperature (deg. C) +150°C
Lifetime Lubricated No
Type Of Lubrication Oiled
Cage Material Phenolic Resin
Rolling Element Material Rolling Bearing Steel
Ring Material Rolling Bearing Steel
Grade Premium
Speed Rating V (Normal)
Precision Class P63 - Combination Of P6 (Dimensional And Running Accuracy) to ISO Tolerance Class 6 and C3 (Internal Clearance Larger Than Normal)

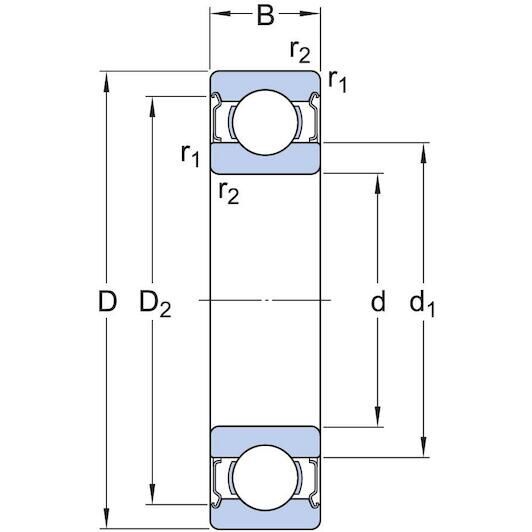

(B) Width (mm) 15
(D) Outside Ø (mm) 52
(d) Inside Ø (mm) 20
Radial Internal Clearance CN (Normal)
Bore Cylindrical
