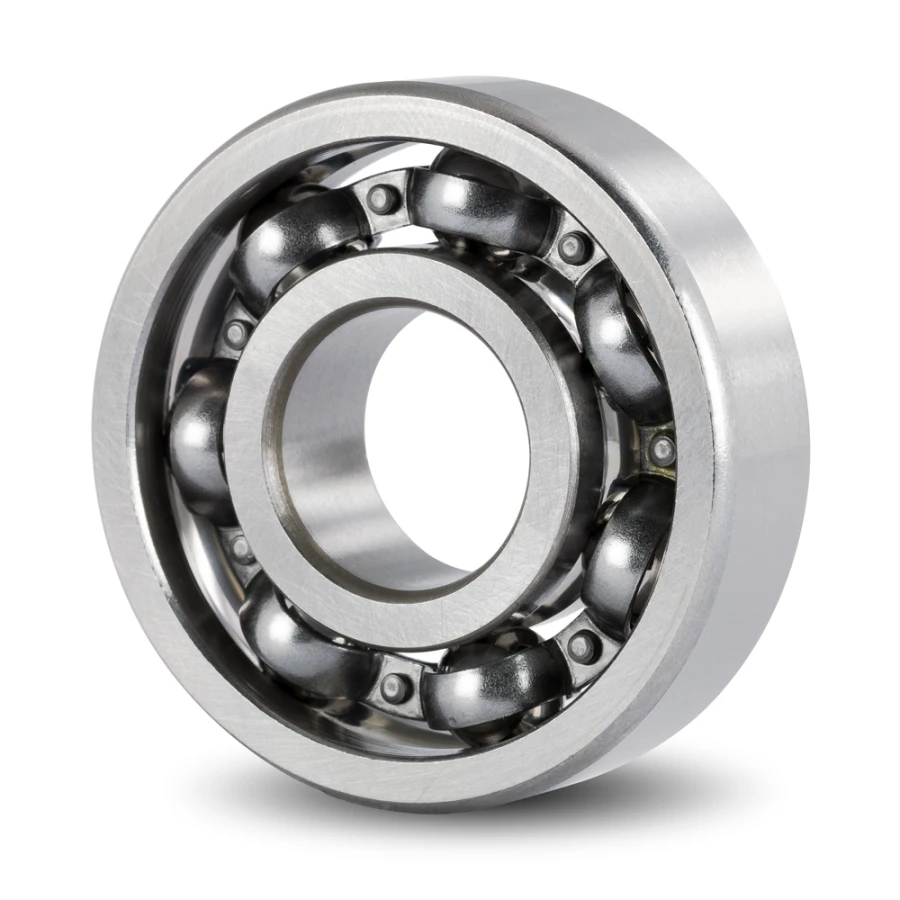

6318C3 KOYO Deep Groove Ball Bearing Open (90x190x43)

$300.41



Single row deep groove ball bearings are the most common type of rolling bearings and their use is widespread across many applications. The raceway grooves on both the inner and outer rings have circular arcs of slightly larger radius than that of the balls. In addition to radial loads, axial loads can be imposed in either direction. Because of their low torque, they are highly suitable for applications where high speeds and low power loss are required.
SKU 6318C3-KOYO
Brand Koyo
Shipping Weight 4.9670kg
Seal Open
Norm. DIN 625-1
Min. Operating Temperature (deg. C) -­40°C
Max. Operating Temperature (deg. C) +150°C
Lifetime Lubricated No
Type Of Lubrication Oiled
Cage Material Sheet Steel
Rolling Element Material Rolling Bearing Steel
Ring Material Rolling Bearing Steel
Grade Premium
Speed Rating V (Normal)
Precision Class P0 (Normal Precision)

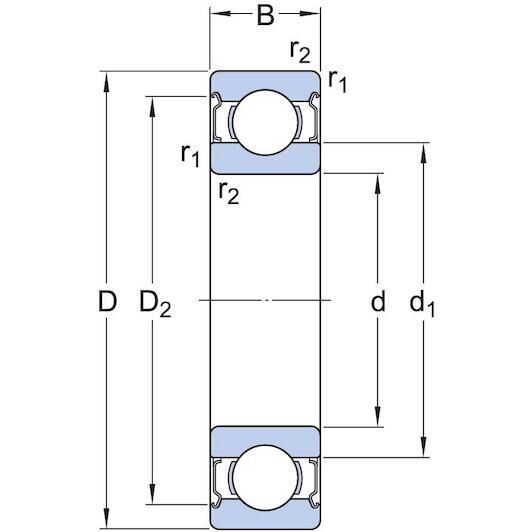

(B) Width (mm) 43
(D) Outside Ø (mm) 190
(d) Inside Ø (mm) 90
Radial Internal Clearance C3 (Greater clearance than Normal)
Bore Cylindrical
