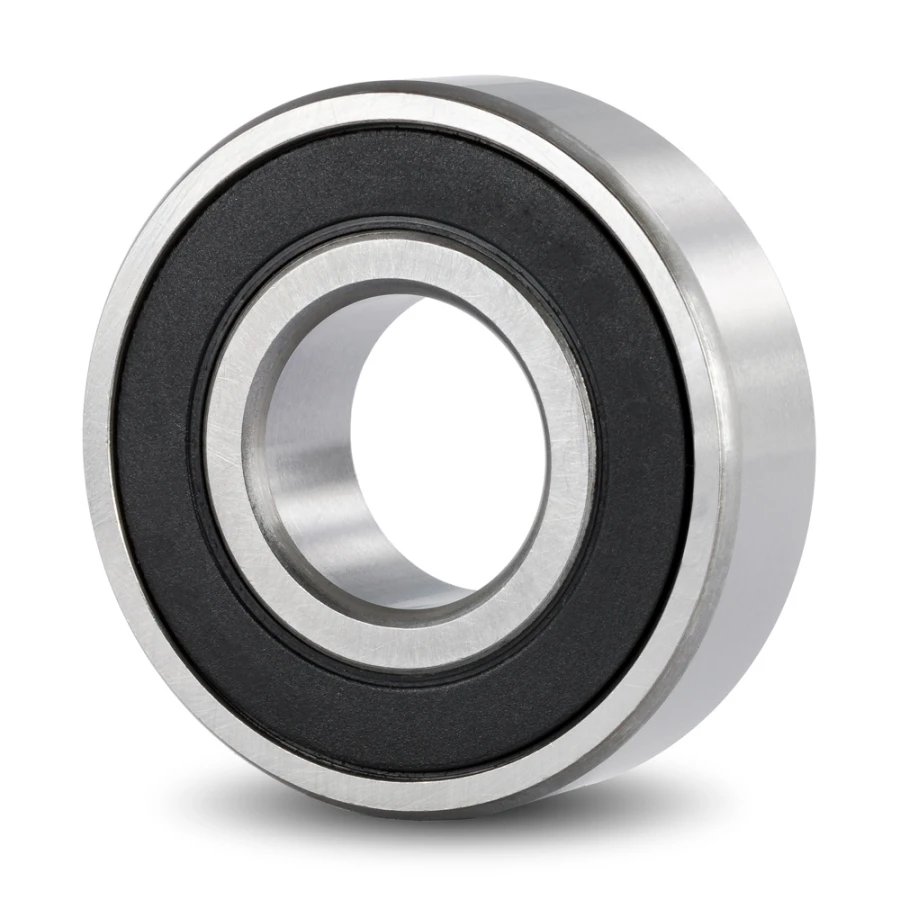

6816-2RS KOYO Deep Groove Ball Bearing Rubber Seals (80x100x10)


Australia-Wide Flat Rate Shipping
$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Express Shipping – StarTrack Courier service (Check StarTrack for transit times to your location)
Select your preferred option at the checkout
*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
Single row deep groove ball bearings are the most common type of rolling bearings and their use is widespread across many applications. The raceway grooves on both the inner and outer rings have circular arcs of slightly larger radius than that of the balls. In addition to radial loads, axial loads can be imposed in either direction. Because of their low torque, they are highly suitable for applications where high speeds and low power loss are required.
Brand KOYO
Shipping Weight 0.1550kg
Type Of Lubrication Grease
Ring Material Rolling Bearing Steel
Precision Class P0 (Normal Precision)

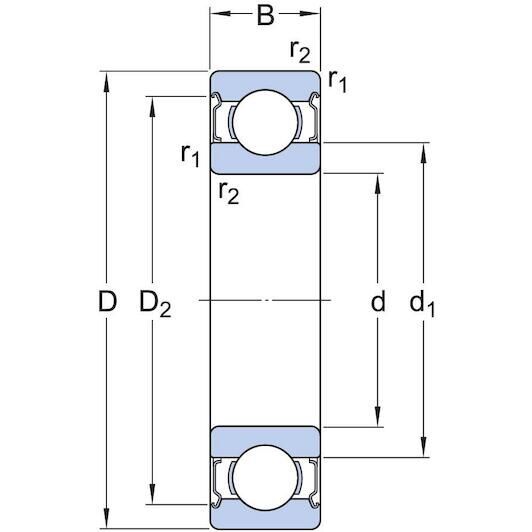

(d) Inside Ø (mm) 80
Grade Premium
Max. Operating Temperature (deg. C) +120°C
Cage Material Sheet Steel
Seal 2RS - Rubber Seals on both sides
(B) Width (mm) 10
Radial Internal Clearance CN (Normal)
Norm. DIN 625-1
Lifetime Lubricated Yes
Rolling Element Material Rolling Bearing Steel
Speed Rating V (Normal)
(D) Outside Ø (mm) 100
Bore Cylindrical
Min. Operating Temperature (deg. C) -­20°C
