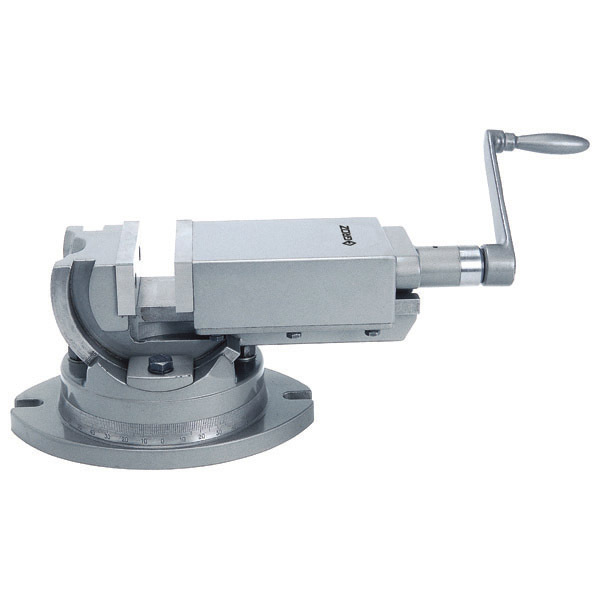

AMV/SP/150 Groz 150mm Super Precision Swivel Angular Machine Vice

$1,605.45



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Express Shipping – StarTrack Courier service (Check StarTrack for transit times to your location)

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
Angular adjustment is achieved via the angular slide that can be set to any desired angle 45° on either side. Additionally the fully graduated 360° swivel base allows the vice to be set at any angle along the vertical axis.
These vices are manufactured from close grained hitensile seasoned cast iron with fully hardened and ground tool steel jaws.
Ergonomically designed all steel handle allows for stress free operation. Assembled on the spindle crank with a spring loaded mechanism providing positive grip.
Use of hi-tensile grade 10.8 fasteners provides strength and rigidity to these vices.
Relief in clamp seat ensures complete surface contact as against a line contact between the “Hold Down” clamp and movable slide, thereby providing firm locking at any desired angle.
A milled slot in the vice base helps in accurate location of the vice on the machine table using rectangular locating nuts.
'Hold Down' slots provide secure clamping of the vice on the machine table.
Code: AMV/SP/150
Jaw Width: 150mm
Jaw Opening: 150mm
Jaw Depth: 45mm
Net Weight: 42.8kg
SKU GZ-35004
Barcode # 8901486350042
Brand Groz
Shipping Weight 44.0000kg
