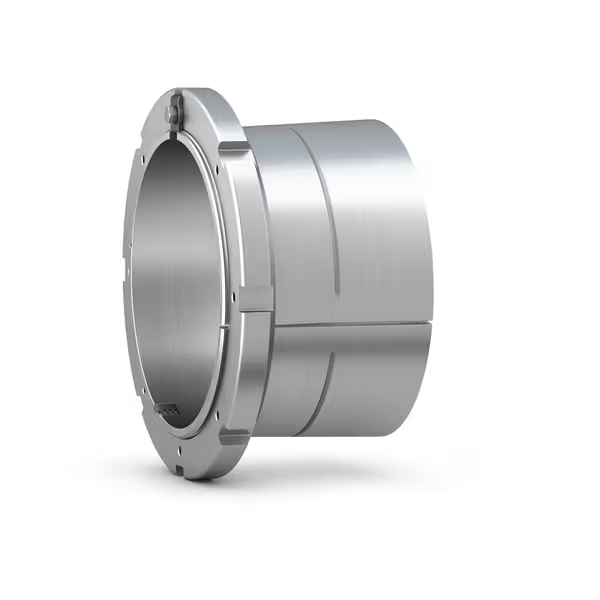

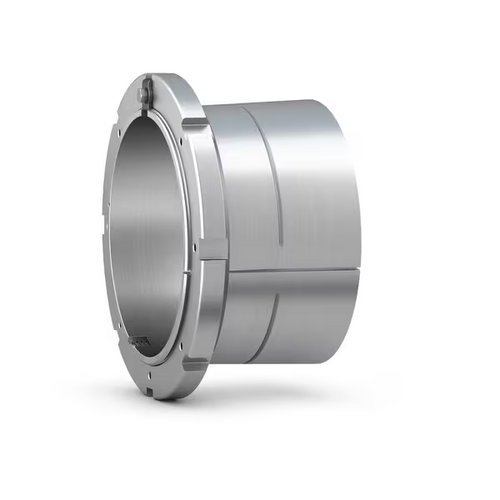

AOH30/560 Bearing Adaptor Sleeve Metric 530mm Bore with Oil Injection Hole

$20,390.41



Large and/or Heavy Item

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. These sleeves enable use of the oil injection method to mount and dismount bearings, and they are slit and are supplied complete with a lock nut and locking device. They are easy to install and require no additional location on the shaft.

  • Easy to install
  • Complete with lock nut
  • Complete with locking device
SKU AOH30-560-FSQ
Shipping Weight 86.0000kg
Shipping Width 0.600m
Shipping Height 0.300m
Shipping Length 0.800m
Shipping Cubic 0.144000000m3
Max. Operating Temperature (deg. C) +150°C
Min. Operating Temperature (deg. C) -30°C
(l) Length (mm) 282
(d²) Outside Ø (mm) 650
Norm DIN 5415
(d¹) Inside Ø (mm) 530
(d) For Shaft Bore (mm) 560
(G) Thread M560X6.00
