AZK60857.5 IKO Thrust Cylindrical Roller Cage Assembly (60x85x7.5)

$171.31



Axial Cylindrical Roller Bearings
Axial cylindrical roller bearings, also known as thrust cylindrical roller bearings, are designed to support very high axial loads in one direction while allowing minimal radial load. They consist of cylindrical rollers arranged perpendicularly to the shaft, providing a large contact area and excellent load-carrying capacity. These bearings are ideal for applications requiring high stiffness and precise axial positioning.

Key Features:

  • Designed to carry very high axial loads in one direction

  • Cylindrical rollers provide large contact area for high load capacity

  • Offer high rigidity and axial stiffness

  • Low friction and suitable for moderate to high-speed operation

  • Cannot support radial loads

  • Available as single-direction or double-direction designs

  • Can be separable, allowing easy mounting and dismounting

  • Commonly used in machine tools, gearboxes, presses, and heavy-duty drives

SKU AZK60857.5-IKO
Brand IKO
Shipping Weight 0.1350kg
Grade Premium

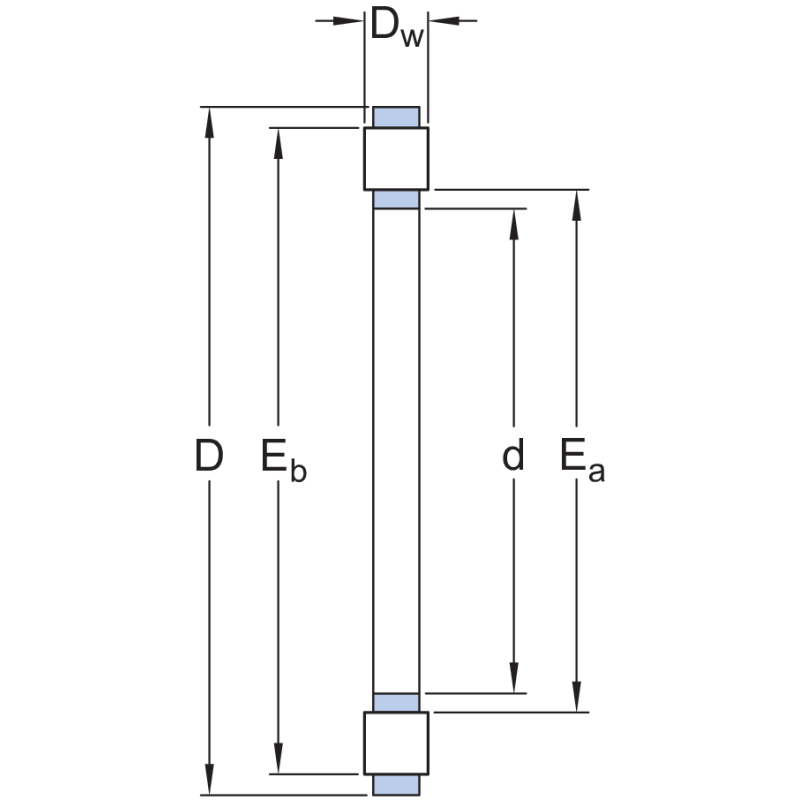

(d) Inside Ø (mm) 60
(D) Outside Ø (mm) 85
Rolling Element Material Rolling Bearing Steel
Cage Material Plastic
Type Of Lubrication Oiled
Max. Operating Temperature (deg. C) +120°C
Min. Operating Temperature (deg. C) ­­­40°C
Norm. DIN 722
(dw) Width (mm) 7.5
Thrust Races Included No
Outer Thrust Race GS6085
Inner Thrust Race WS6085
