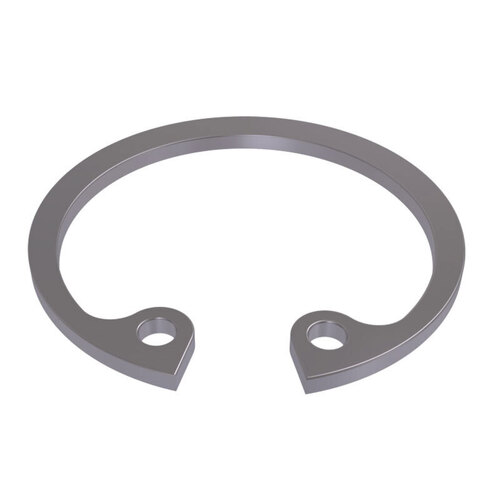

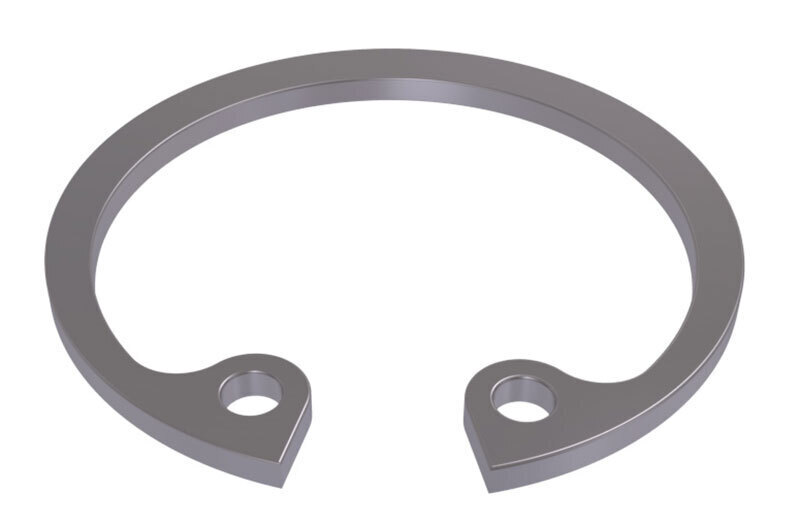

1300-100 Internal Circlip for 100mm Bore to DIN 472 Spring Steel

$10.63Per: EACH



100x3 DIN 472 Retaining Ring for Bore / Internal Circlip Spring Steel
SKU 1300-100
Material SPRING STEEL
Max. Operating Temperature (deg. C) +150°C
Min. Operating Temperature (deg. C) -30°C
Norm. DIN 472
(B) Bore Ø (mm) 100
(G) Groove Ø (mm) 103.5
(W) Groove Width (mm) 3.15
(t) Thickness (mm) 3
(D) Outside Ø Of Circlip (mm) 105.5
