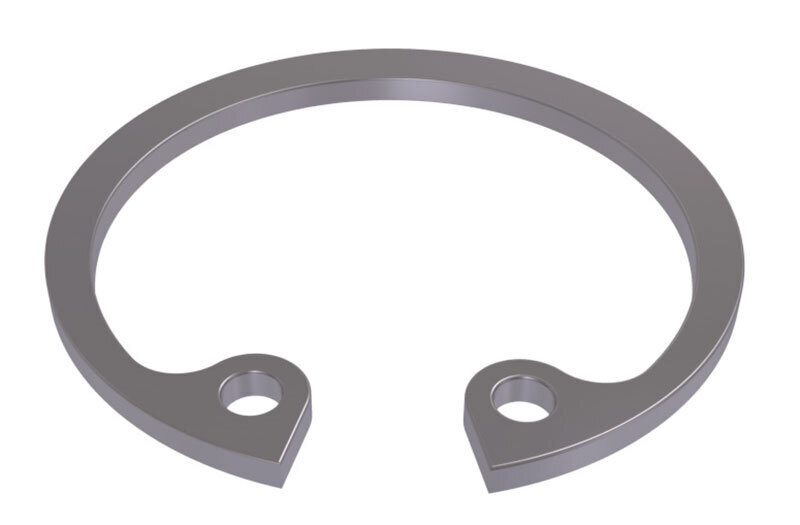

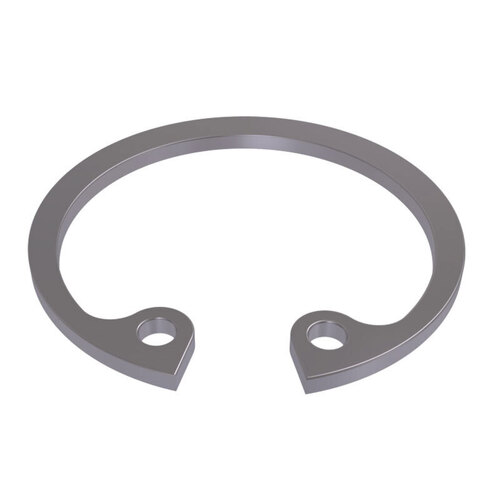

1300-16 Internal Circlip for 16mm Bore to DIN 472 Spring Steel

$0.31Per: EACH



16x1 DIN 472 Retaining Ring for Bore / Internal Circlip Spring Steel
SKU 1300-16
Material SPRING STEEL
Max. Operating Temperature (deg. C) +150°C
Min. Operating Temperature (deg. C) -30°C
Norm. DIN 472
(B) Bore Ø (mm) 16
(G) Groove Ø (mm) 16.8
(W) Groove Width (mm) 1.1
(t) Thickness (mm) 1
(D) Outside Ø Of Circlip (mm) 17.3
