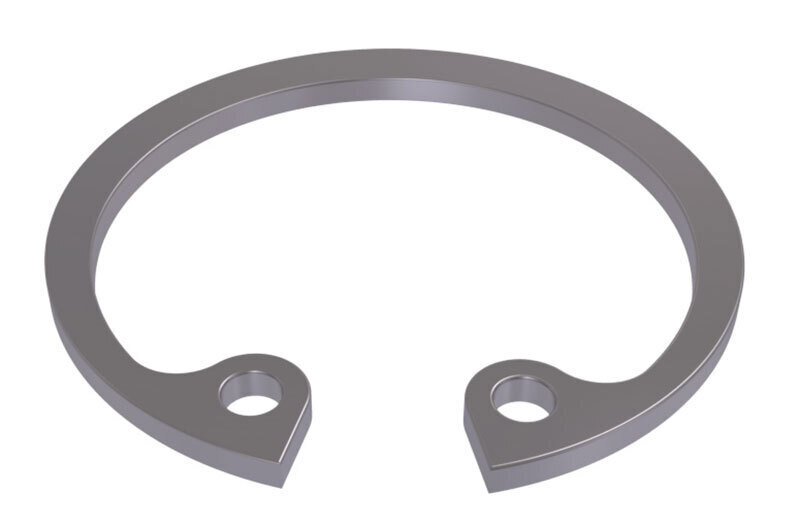

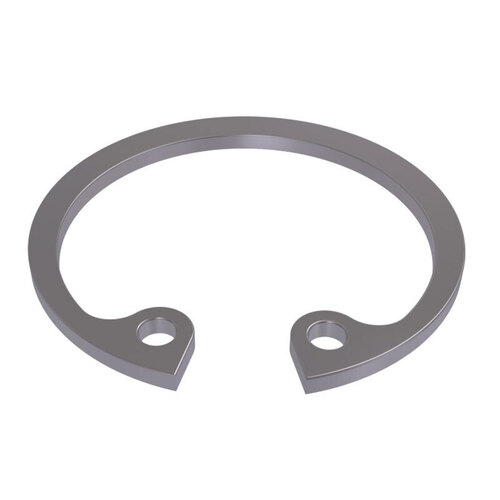

1300-23 Internal Circlip for 23mm Bore to DIN 472 Spring Steel

$0.84Per: EACH



23x1.2 DIN 472 Retaining Ring for Bore / Internal Circlip Spring Steel
SKU 1300-23
Material SPRING STEEL
Max. Operating Temperature (deg. C) +150°C
Min. Operating Temperature (deg. C) -30°C
Norm. DIN 472
(B) Bore Ø (mm) 23
(G) Groove Ø (mm) 24.1
(W) Groove Width (mm) 1.3
(t) Thickness (mm) 1.2
(D) Outside Ø Of Circlip (mm) 24.6
