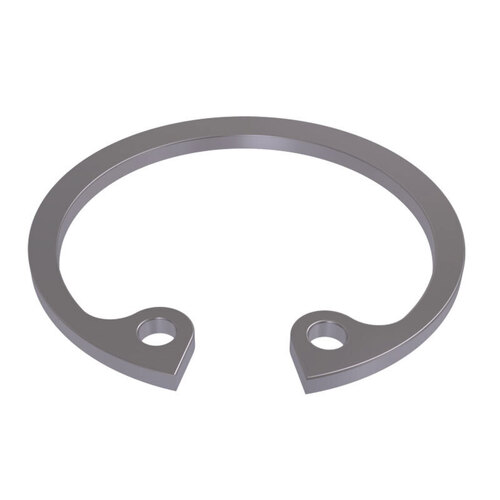

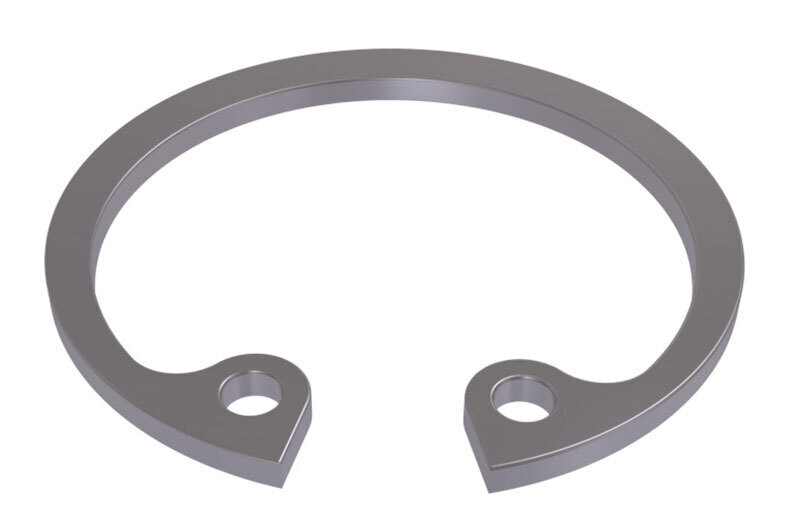

1300-83 Internal Circlip for 83mm Bore to DIN 472 Spring Steel

$8.50Per: EACH



83x3 DIN 472 Retaining Ring for Bore / Internal Circlip Spring Steel
SKU 1300-83
Material SPRING STEEL
Max. Operating Temperature (deg. C) +150°C
Min. Operating Temperature (deg. C) -30°C
Norm. DIN 472
(B) Bore Ø (mm) 83
(G) Groove Ø (mm) 86.5
(W) Groove Width (mm) 2.65
(t) Thickness (mm) 2.5
(D) Outside Ø Of Circlip (mm) 88.5
