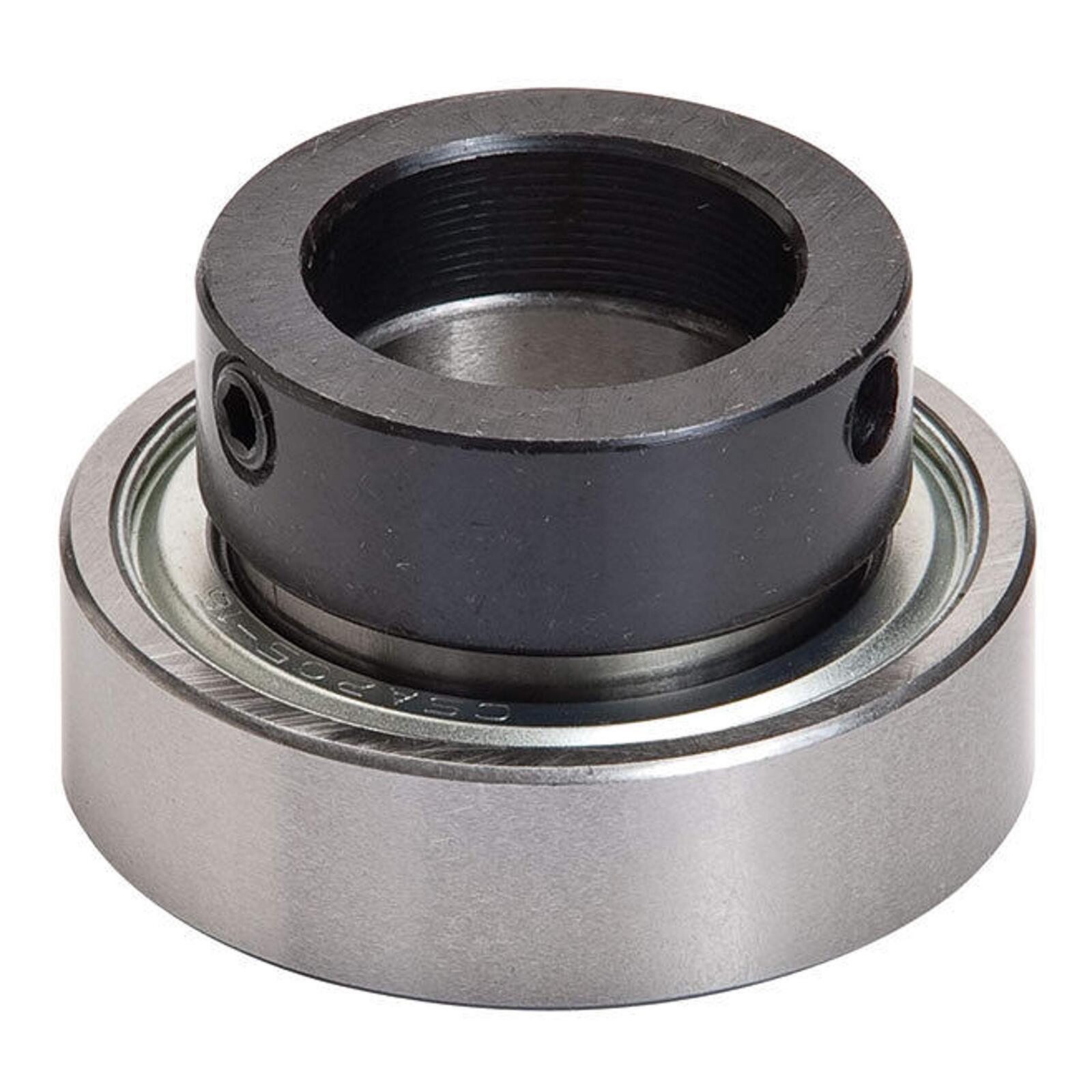

CSA204 Economy Radial Insert Ball Bearing (20mm shaft)

$26.93



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Express Shipping – StarTrack Courier service (Check StarTrack for transit times to your location)

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU CSA204-ECO
Brand NBR
Shipping Weight 0.1500kg
Norm. DIN 626-1
Lifetime Lubricated Yes
Rolling Element Material Rolling Bearing Steel
(D) Outside Ø (mm) 47
Grade Economy
(l) Overall Width (mm) 31
(B) Width Of Inner Ring (mm) 21.5
Min. Operating Temperature (deg. C) ­20°C
Type Of Lubrication Grease
Ring Material Rolling Bearing Steel
(d) Inside Ø (mm) 20
Outer Race Cylindrical
(C) Width Of Outer Ring (mm) 14
Max. Operating Temperature (deg. C) +120°C
Cage Material Sheet Steel
Seal 2 Piece Seal
Bore Cylindrical
Shaft Fastening Eccentric Collar
Extended Inner Ring One Side
