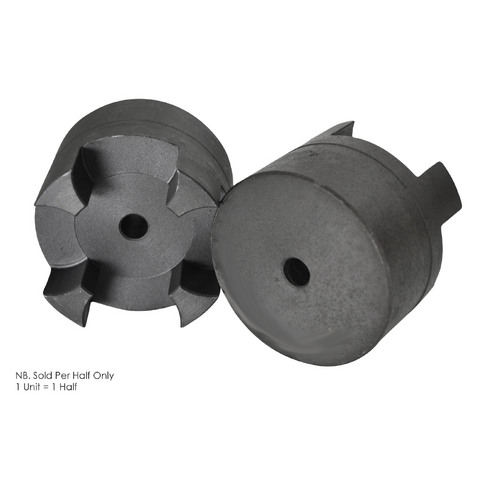

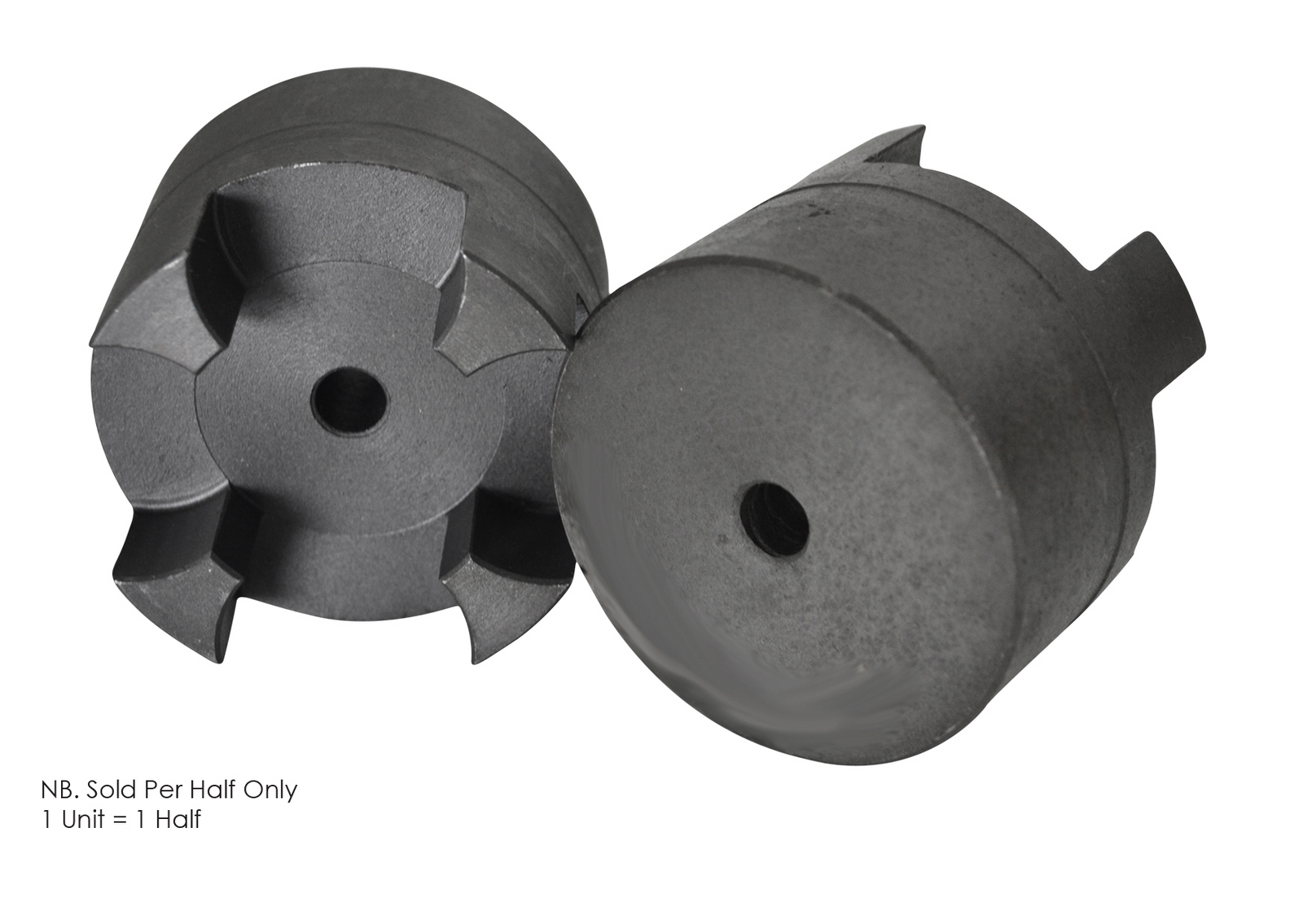

Curved Jaw Coupling Half GE24-1a Full Hub Pilot Bore Centre

$48.46



SKU GE24-1a
Shipping Weight 0.3800kg
Bore PILOT BORE
(D) Outside Ø (mm) 56
Min. Bore (mm) 22
Max. Bore (mm) 28
Dimension L (mm) 77
Hub Type Type 1a (Full Hub)
Max. RPM 14000
Rated Torque - Yellow Element (Nm) 35
Rated Torque - Red Element (Nm) 60
Dimension D¹ (mm) 40
Dimension S (mm) 1
Dimension L¹ (mm) 46
Dimension L² (mm) 30
