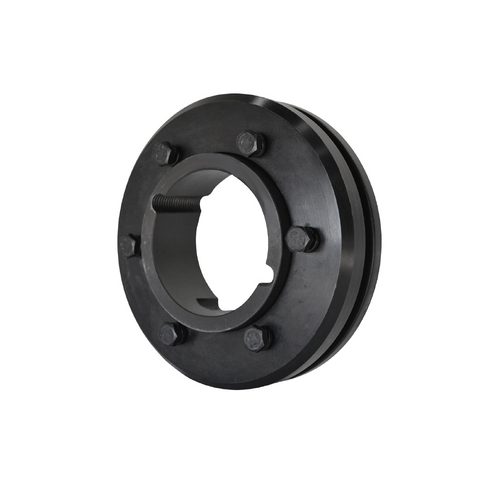

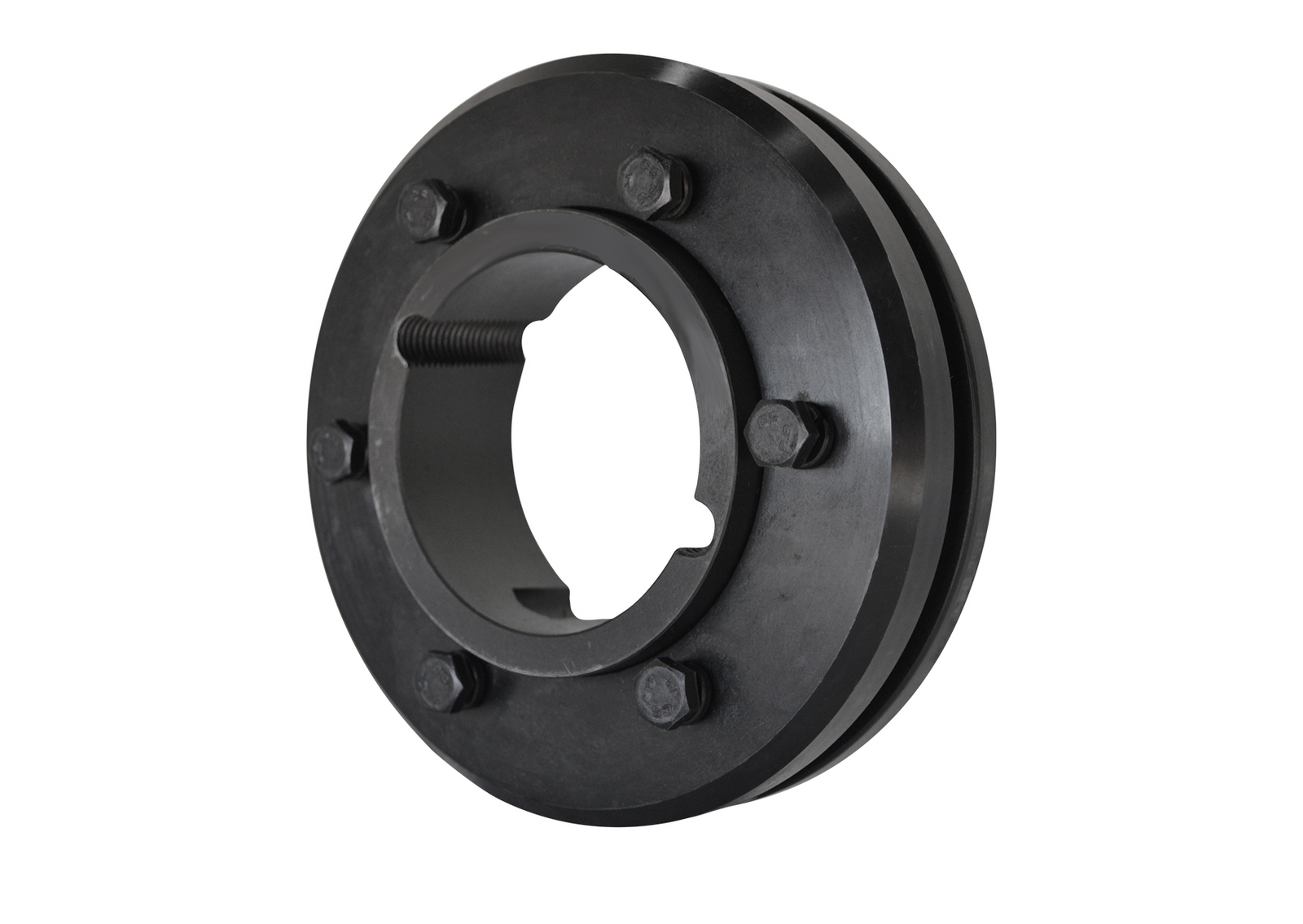

Flexible Tyre Coupling Half F100 Flange Side Taper Lock Centre

$357.91



SKU F100F
Shipping Weight 9.9000kg
Bore Taper Lock
Compatible Bush 3020
Dimension D (mm) 120
Dimension E (mm) 51
Dimension L (mm) 65
Dimension M (mm) 13.5
Hub Type F - Bush Installed on Flange Side
Max. RPM 2600
Nominal Torque (Nm) 675
Dimension F (mm) 62
(A) Outside Ø Tyre (mm) 254
(C) Outside Ø Hub (mm) 216
