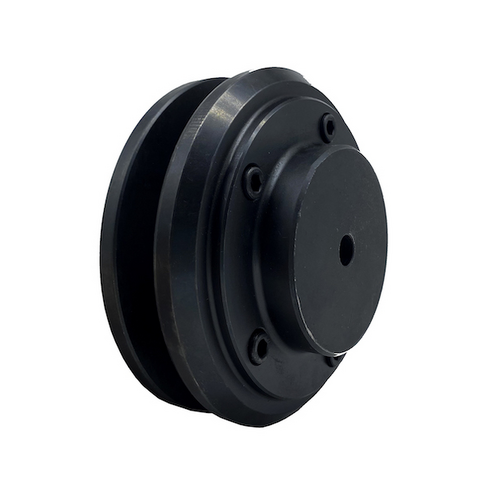

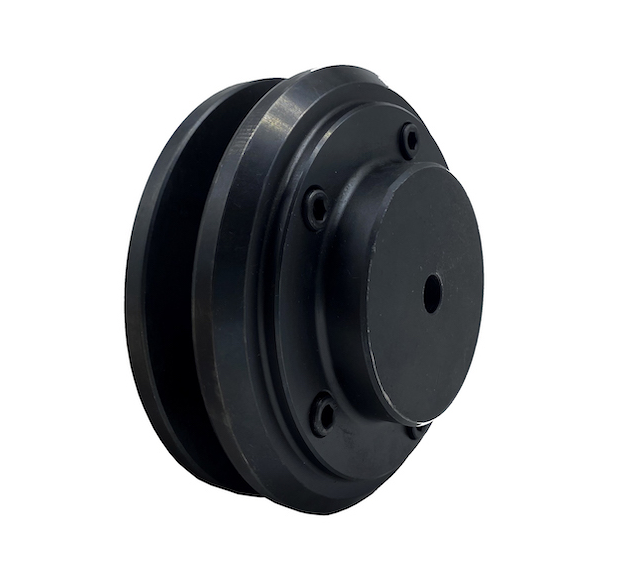

Flexible Tyre Coupling Half F70 B Flange Pilot Bore Centre

$102.91



SKU F70B
Shipping Weight 3.1000kg
Bore PILOT BORE
Min. Bore (mm) 14
Max. Bore (mm) 50
Dimension D (mm) 80
Dimension E (mm) 30
Dimension L (mm) 47
Dimension M (mm) 11.5
Hub Type B - Pilot Bore
Max. RPM 3600
Nominal Torque (Nm) 250
Dimension F (mm) 50
(A) Outside Ø Tyre (mm) 187
(C) Outside Ø Hub (mm) 144
