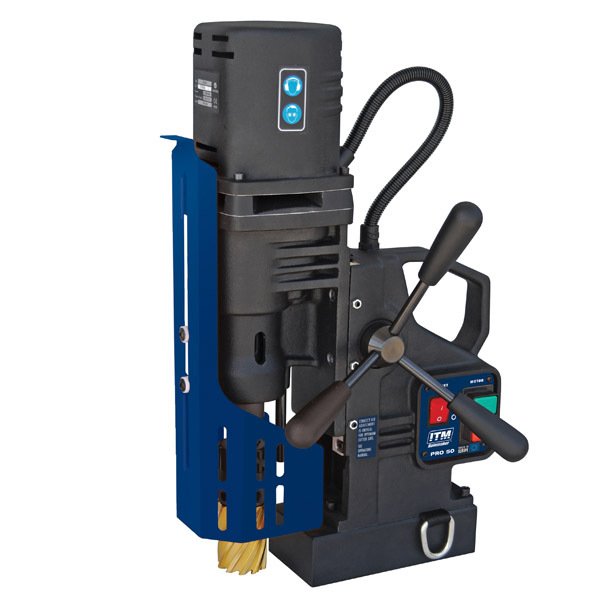

Holemaker PRO50 Magnetic Base Drill, 240V, 2MT, Cap: 52mm Dia x 75mm
$3,040.00
The ability to use Holemaker cutters, No. 2 Morse Taper shank drills & reamers, as well as a drill chuck makes this a very multi-purpose machine.
Supplied complete with arbor for use with Holemaker cutters up to 52mm diameter & 75mm depth of cut when using Holemaker cutters, and 23mm diameter using taper shank drills or reamers. An industrial 2 speed gearbox and 1260w motor provide a strong hardworking machine.
Other standard features include cast iron construction, gravity feed coolant system & left or right hand feed handle operation.
The unique semi-automatic gib adjustment system enables simple, fast and always correct fine tuning without any expert knowledge orexperience.
Suitable for steel fabrication, engineering workshops & maintenance facilities where a heavy duty versatile machine is highly beneficial.
Capacity ( Diameter ): 52mm
Capacity ( Depth ): 75mm
Capacity ( Twist Drill ): #2 Morse Taper 23mm
Motor Power: 1260 watt
Input Power: 1340 watt Single Phase 240V
Speed: 2 speed (200 / 400rpm)
Weight: 16.5kg
Magnetic Dead Lift: 12000Nm On 25mm Steel Plate
Stroke: 153mm
Height: 426mm min / 579mm max
Through Spindle Coolant System
Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion
Supplied In Metal Carry Case With Cutter Guard & Safety Strap
Supplied complete with arbor for use with Holemaker cutters up to 52mm diameter & 75mm depth of cut when using Holemaker cutters, and 23mm diameter using taper shank drills or reamers. An industrial 2 speed gearbox and 1260w motor provide a strong hardworking machine.
Other standard features include cast iron construction, gravity feed coolant system & left or right hand feed handle operation.
The unique semi-automatic gib adjustment system enables simple, fast and always correct fine tuning without any expert knowledge orexperience.
Suitable for steel fabrication, engineering workshops & maintenance facilities where a heavy duty versatile machine is highly beneficial.
Capacity ( Diameter ): 52mm
Capacity ( Depth ): 75mm
Capacity ( Twist Drill ): #2 Morse Taper 23mm
Motor Power: 1260 watt
Input Power: 1340 watt Single Phase 240V
Speed: 2 speed (200 / 400rpm)
Weight: 16.5kg
Magnetic Dead Lift: 12000Nm On 25mm Steel Plate
Stroke: 153mm
Height: 426mm min / 579mm max
Through Spindle Coolant System
Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion
Supplied In Metal Carry Case With Cutter Guard & Safety Strap
| SKU | HMPRO50D |
| Barcode # | 9328042016171 |
| Brand | Holemaker |
| Shipping Weight | 25.0000kg |
| Type | Mag Base Drill |
