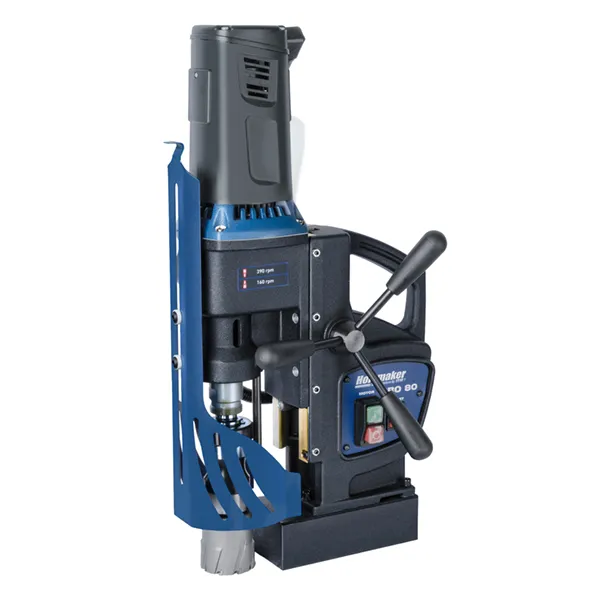

Holemaker PRO80 Magnetic Base Drill, 240V, 3MT, Cap: 80mm Dia x 75mm

$4,699.00Per: EACH



Large and/or Heavy Item

Features

The Holemaker Pro 80 is a powerful 2-speed magnetic base drill, enabling milling capacity up to 80mm and drilling up to 25mm. Its rigid design extends tool life and semi-automatic gib adjustment enables the simple, fast, and correct operation to be done in a few easy steps. Thanks to the innovative lightweight smart magnet, the HMPRO80 weighs only 18.0kg.



  • European made machine
  • Rigid casting designed to withstand downward drilling force, prolonging the tool's life
  • The motor stops when brushes are worn out (it is necessary to replace the brushes to restart the motor)
  • Semi-automatic gib adjustment enables simple, fast, correct, and repeatable slide backlash settings without any expert knowledge or experience
  • Energy Saving Base (ESB) uses only 50% of its power when the motor is not running
  • Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
  • Magnetic Power Adhesion Control (MPAC) detects the adhesive force of the electromagnetic base and protects both the machine and the operator from working on too thin workpiece
  • 2 Year warranty

Specifications

  • Capacity (Diameter): 80mm
  • Capacity (Depth): 110mm
  • #3 Morse taper spindle
  • European made
  • 2-speed gearbox: 160 / 390rpm
  • Large 190mm stroke
  • Powerful 1600W motor
  • 11000Nm Magnetic dead lift on 25mm steel plate
  • Lightweight, only 18kg
  • Includes plastic carry case
SKU HMPRO80
Barcode # 9328042048202
Brand Holemaker
Shipping Weight 39.0000kg
Shipping Width 0.600m
Shipping Height 0.300m
Shipping Length 0.610m
Type Mag Base Drill
