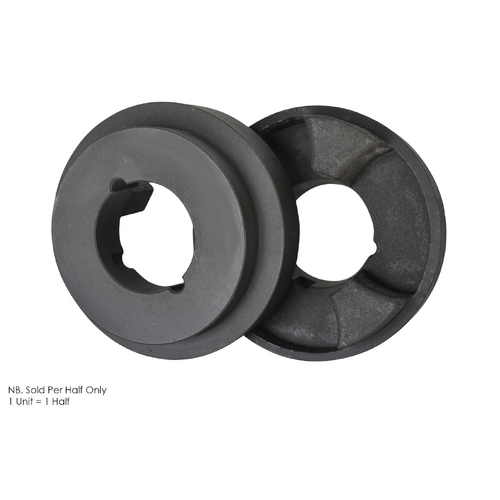

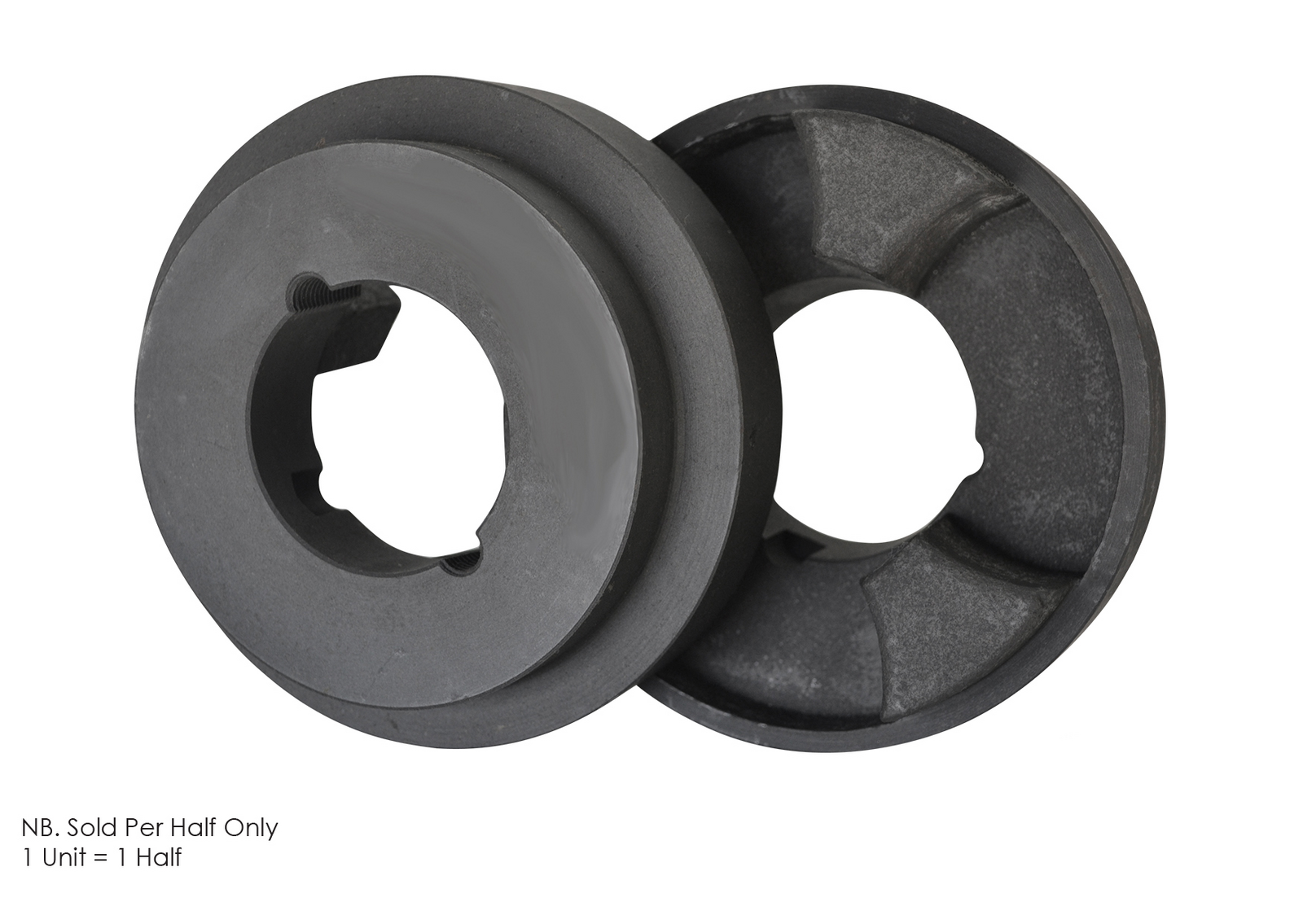

HRC Coupling Half HRC110F Flange Side Taper Lock Centre

$41.23



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Express Shipping – StarTrack Courier service (Check StarTrack for transit times to your location)

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU HRC110F
Shipping Weight 5.0000kg
Dimension F (mm) 45
Nominal Torque (Nm) 160
Dimension C (mm) 18.5
Bore Taper Lock
(L) Assembled Length (mm) 82
(B) Outside Ø Boss (mm) 100
Hub Type F - Bush Installed on Flange Side
Max. Bore (mm) 32 (1-1/4")
Dimension J (mm) 38
(A) Outside Ø Hub (mm) 112
Dimension D (mm) 26.75
Compatible Bush 1610
