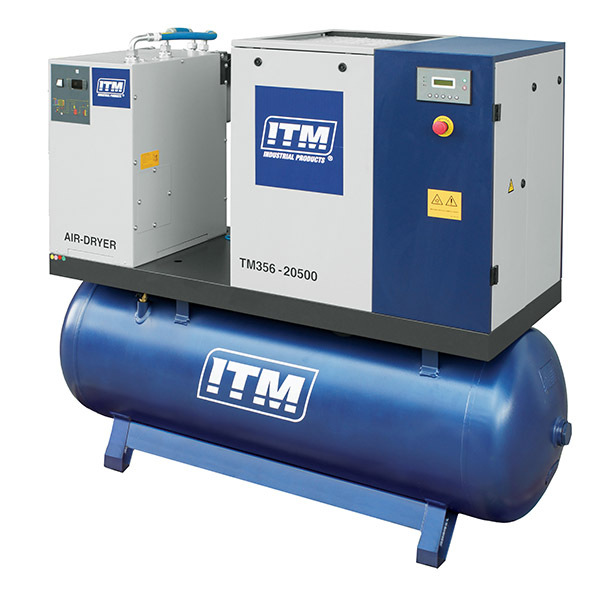

ITM Air Compressor Rotary Screw With Refrigerated Dryer, 3 Phase, 20hp, 500ltr, FAD 1980L/Min
$14,500.00
Complete ready to go package with screw, tank, dryer and pre/post filters included.
Fully sealed cabinet with soundproofing and noise-reducing partitions to minimise noise.
Extra large surface cooler allows unit to operate at ambient temperatures up to 46° C .
Premium filtration with ultra low oil carry over meaning less contamination resulting in cleaner air.
New generation Air End design together with precision manufacturing ensures constant high performance.
Intelligent control system with self-service timing management.
All the main components are easily accessible, ensuring fast and simple maintenance.
Warranty: 2 Years on pump and 1 year on all other components.
Nationwide service and warranty supported by Air Technology Group and ITM service network.
Fully sealed cabinet with soundproofing and noise-reducing partitions to minimise noise.
Extra large surface cooler allows unit to operate at ambient temperatures up to 46° C .
Premium filtration with ultra low oil carry over meaning less contamination resulting in cleaner air.
New generation Air End design together with precision manufacturing ensures constant high performance.
Intelligent control system with self-service timing management.
All the main components are easily accessible, ensuring fast and simple maintenance.
Warranty: 2 Years on pump and 1 year on all other components.
Nationwide service and warranty supported by Air Technology Group and ITM service network.
- Pump Type: Screw
- Motor: 15kW (20HP) - Three Phase 415V
- Tank Capacity: 500 L
- Max Pressure: 147 PSI (10 Bar)
- Free Air Delivery: 1980 L/min (70 CFM)
- Noise: 73 dBA
- Compressor Dimensions: 188cm L x 65cm W x 158cm H
- Net Weight: 465kg
- Shipping Dimensions:205cm L x 90cm W x 175cm H
- Gross Weight: 588kg
- Effective Working Pressure At Outlet Package: 10.0 bar
LIMITATIONS FOR OPERATIONS
- Maximum Effective Working Pressure At Outlet Package: 10.0 bar
- Minimum Effective Working Pressure At Outlet Package: 5.5 bar
- Maximum Allowable Inlet Temperature: 45°C
- Minimum Ambient Temperature: 0°C
PERFORMANCE DATA COMPRESSOR
- Free Air Delivery At Reference Conditions: 30.60L/s or 1.8m³/min or 64.8cfm
- Mean Sound Pressure Level (2): 73 dBA
| SKU | TM356-20500 |
| Barcode # | 9328042034717 |
| Shipping Weight | 538.0000kg |
| Shipping Width | 0.900m |
| Shipping Height | 1.750m |
| Shipping Length | 2.050m |
