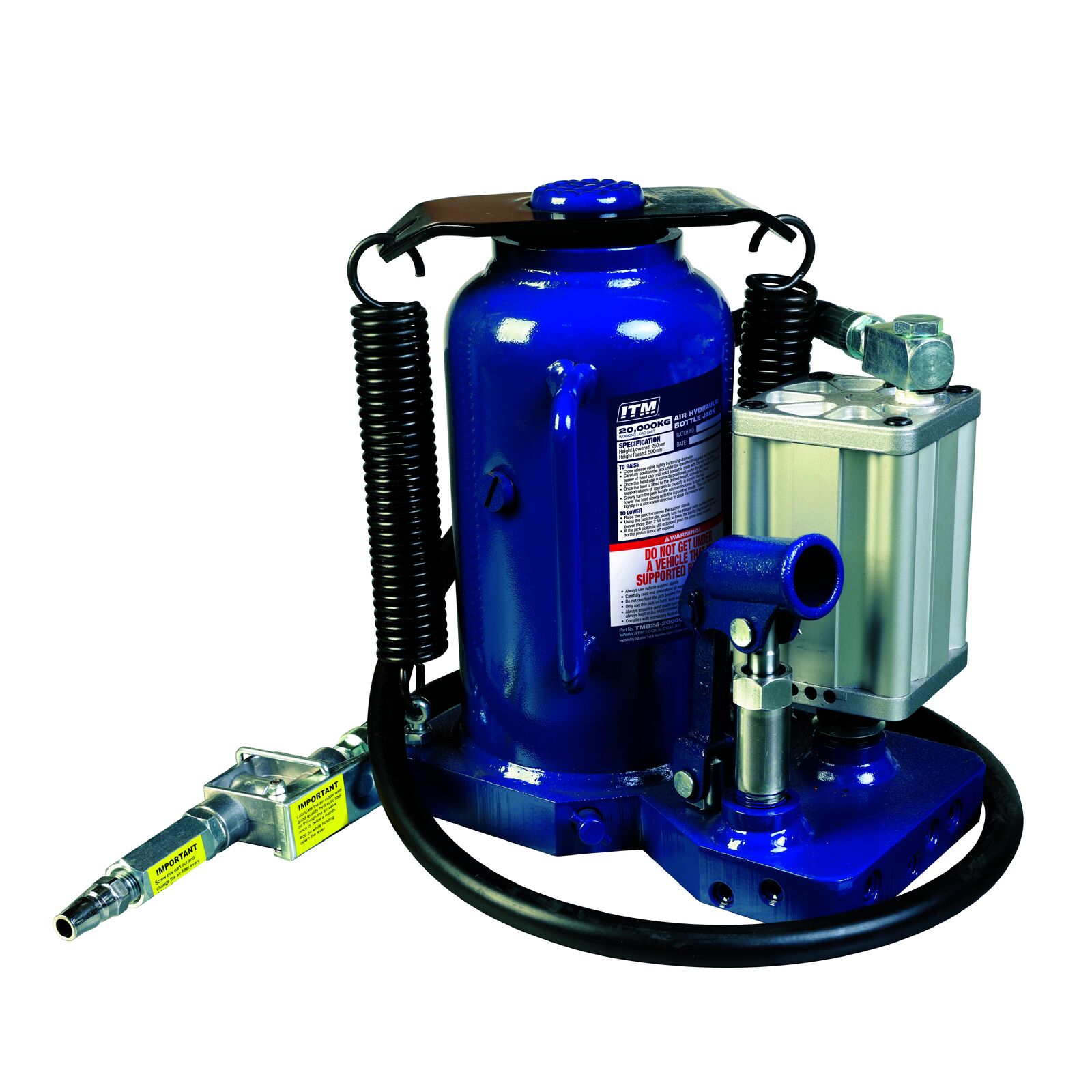

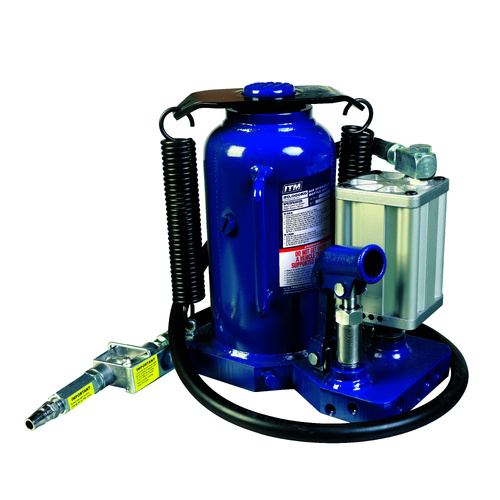

ITM Bottle Jack Air Hydraulic 20,000Kg

$349.00



Large and/or Heavy Item

ITM Air/Hydraulic bottle jacks are specifically designed for commercial use and can be operated either manually or pneumatically and comply with the Australian Mandatory Standard AS/NZS 2693:2007. A high quality aluminium air pump allows fast and efficient lift when in the workshop, the manual function allows for normal operation anywhere when air supply is not available making them perfect for onsite/offsite lifting of heavy duty machinery, farm equipment and industrial construction equipment. Constructed from heavy duty billet steel, these dual mode bottle jacks and ideal for lifting farm vehicles, heavy-duty machinery, industrial construction equipment and more. Fitted with polyurethane seals and a fully chromed and polished cylinder and piston, long life and reliable performance are guaranteed


  • Twon style operation: Air and hydraulic (includes handle for hydraulic operation)
  • Polyurethane seals - last up to 10 times longer than traditional rubber seals
  • Billet steel base and welded construction for extra strength and durability
  • Fully chromed and polished cylinder and piston
  • 2 Speed action - slow down under load
  • Complies with mandatory Australian standard: AS/NZS 2693:2007
    • Working Load Limit: 20,000kg
    • Height Lowered: 260mm
    • Height Raised: 500mm
    • Lift Height: 160mm
    • Hose Length: 1200mm
    • Operating Pressure: 0.7 - 1.2Mpa
    • Net Weight: 17.5kg
SKU TM824-20000
Barcode # 9328042045508
Brand ITM
Shipping Weight 18.5000kg
