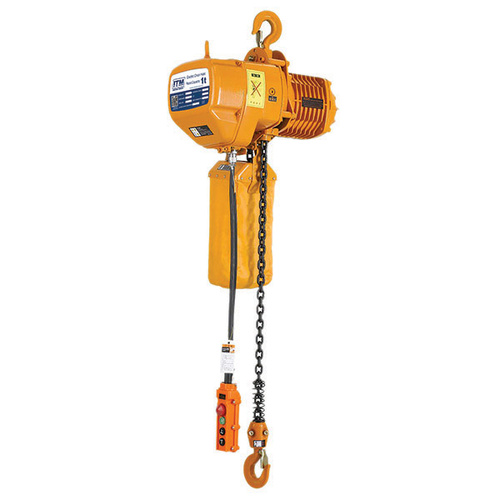

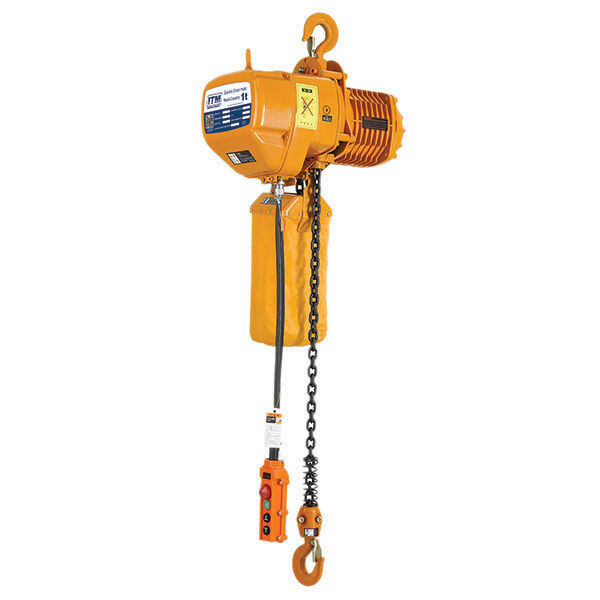

ITM Electric Chain Hoist, 415V, 1 Tonne, 3 Meter Lift

$2,999.00



Large and/or Heavy Item

  • Japanese technology with dual braking system to ensure safe and reliable operation
  • Dual Speed
  • Compact and light weight design
  • Weight overload limiter for safety
  • Dual-gear drive system providing smooth and quiet operation
  • Three phase, 415V motor
  • Upper and lower limit switches to prevent chain runout
  • Chain length can be altered by ITM to your required length
  • Tested & certified to AS 1418.2
  • Test certificate & user manual supplied
  • Replacement Chain 7.1mm TM9810-01607-1
  • Replacement Chain 11.2mm TM9810-04011-2
  • Rated Capacity: 1 Tonne
  • Standard Lift: 3m
  • Running Test Load: 12.5kN
  • Motor: 1800W 415V 3P
  • No. of Chain Drops: 1
  • Chain Type: Grade 80 7.1mm
  • Lift Speed: 6.9 & 2.3m/min
  • Net Weight: 61kg
  • Extra Weight Per Metre Of Extra Lift: 1.1kg

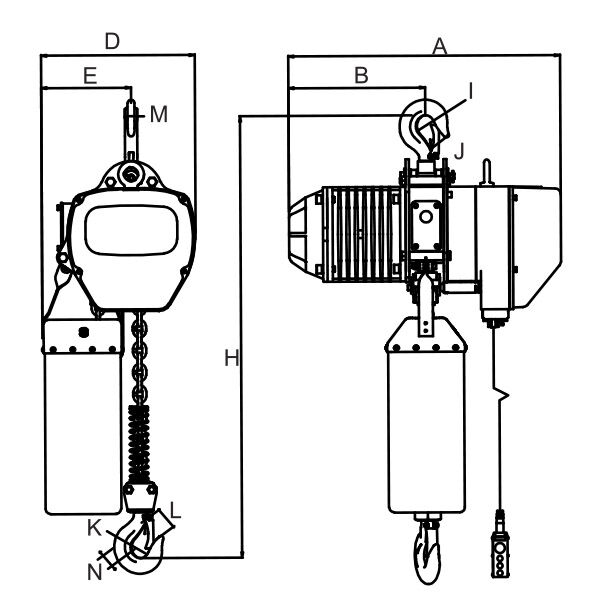

  • Dimension A: 582mm
  • Dimension B: 280mm
  • Dimension D: 300mm
  • Dimension E: 176mm
  • Dimension H: 650mm
  • Dimension I: 40mm
  • Dimension J: 31mm
  • Dimension K: 40mm
  • Dimension L: 31mm
  • Dimension M: 22mm
  • Dimension N: 22mm
SKU TM9003-01003
Barcode # 9328042036148
Brand ITM
Shipping Weight 75.0000kg
