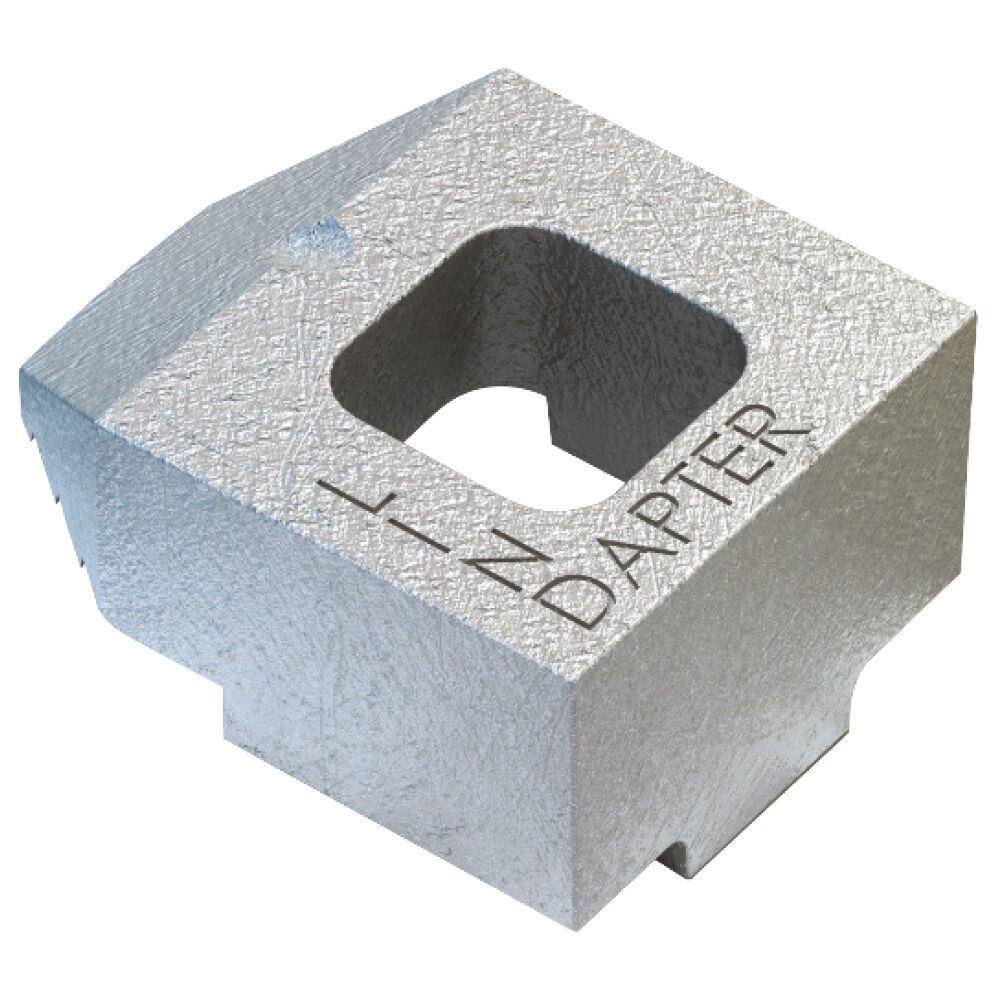

B20S Lindapter - Type B Flat Top Clamp M20 Short Tail Hot Dip Galvanized

$37.42Per: EACH

Ready To Ship

Size
Tail Length
Material/finish

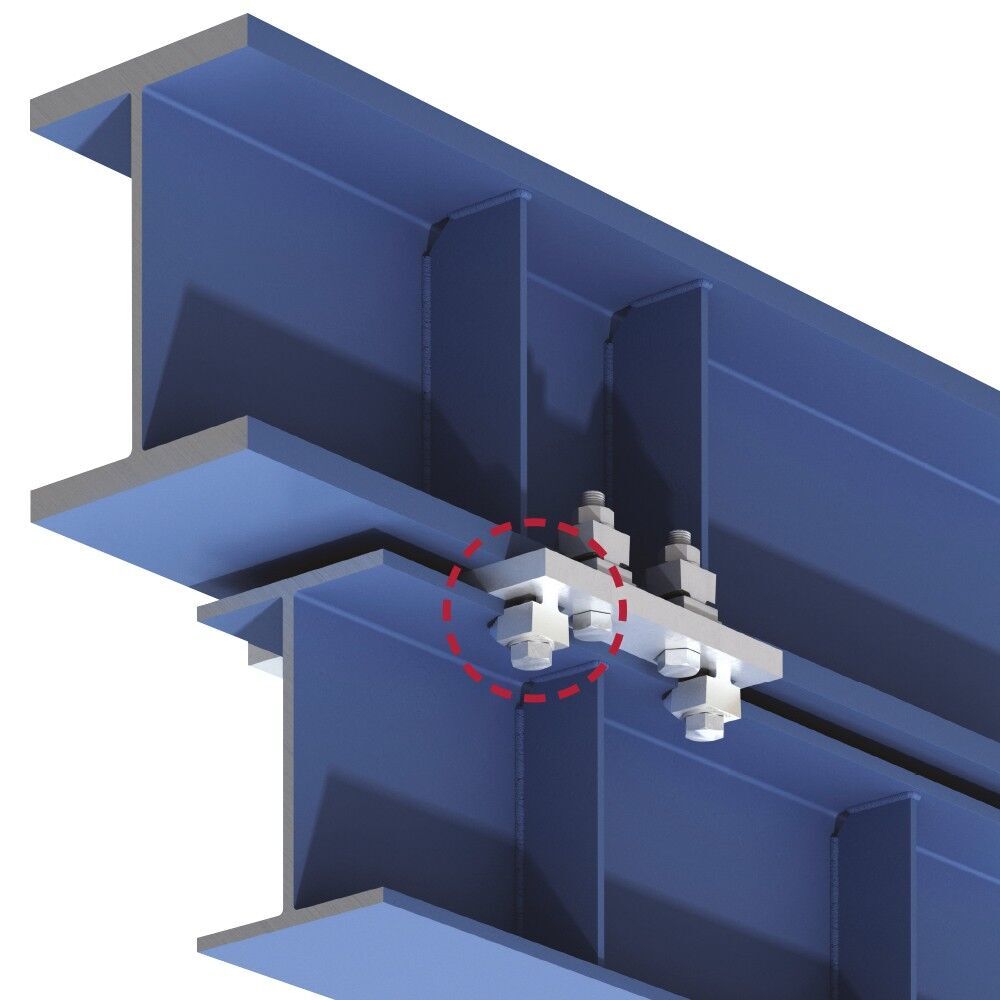

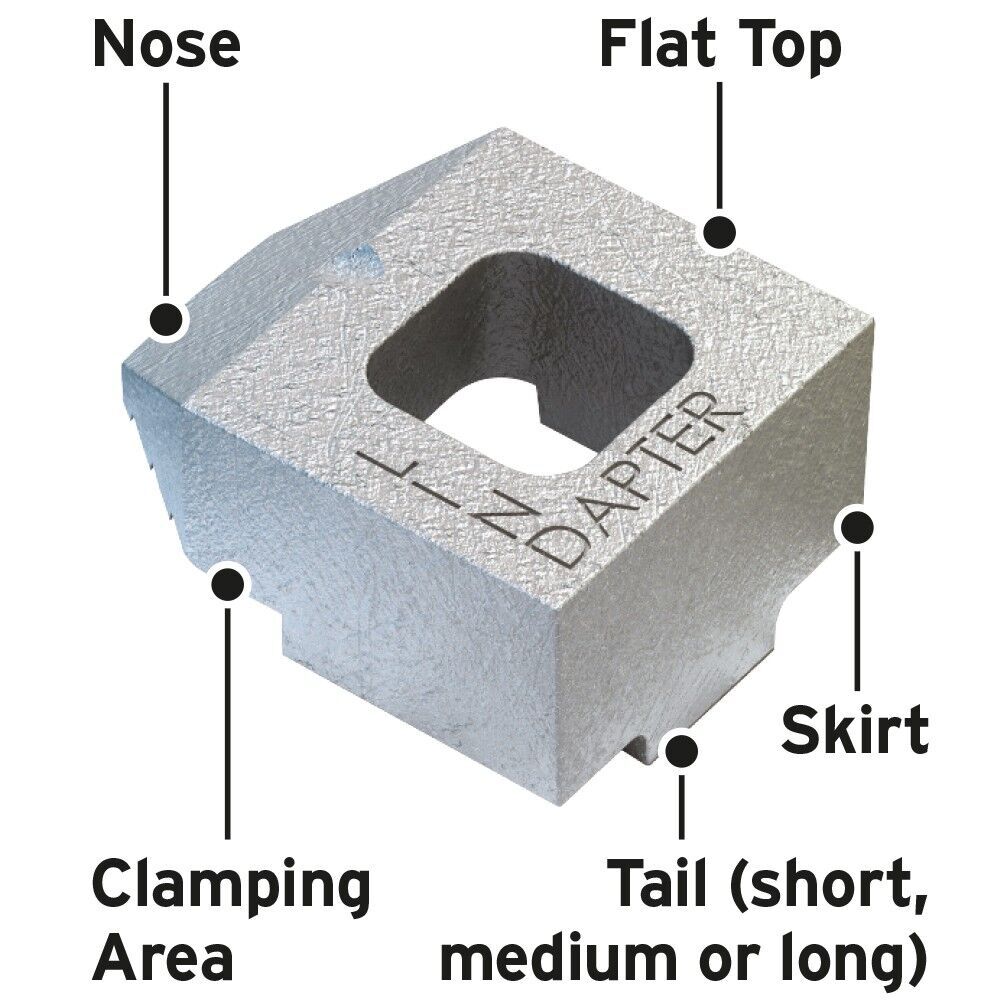

The Type B girder clamp is used to achieve a fast steelwork fixing connection between two steel beams and is often used in a pair with Type A clamps. It has a flat top to allow the bolt head or nut to rotate on a hardened washer and can also be used with studs, tie rods or J-bolts. The skirt on the underside of the clamp abuts the edge of the beam flange and prevents the clamp rotating during installation. Type B girder clamps can also be used on their own if one piece of the steelwork has been pre-drilled.

Technical Specification

    Safe Working Loads (FOS 5:1)   Dimensions

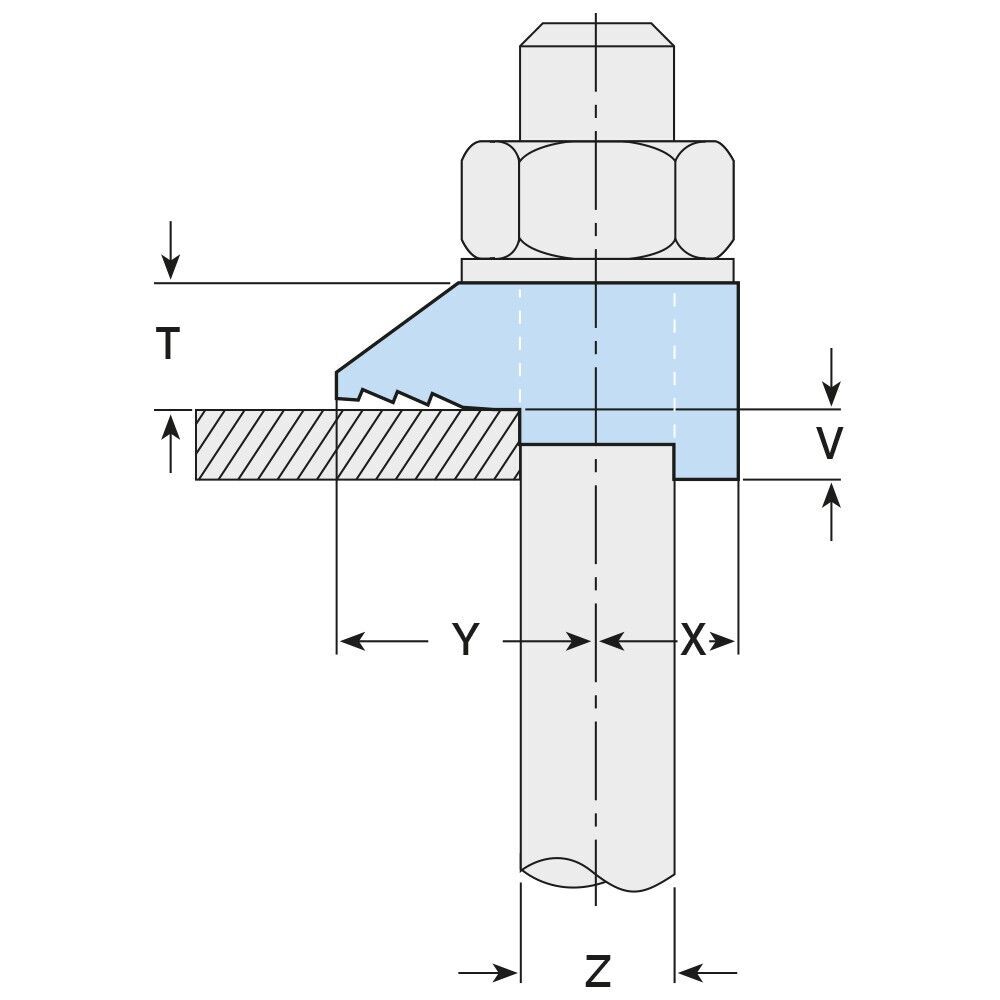

Product Code Bolt 8.8 Z Tensile / 1 Bolt Slip / 2 Bolts Tightening Torque* Y X Tail Length V T Width
              short medium long
    kN kN Nm mm mm mm mm mm mm mm
BO8 M8 1.0 - 6 16 8 - 4 - 8 20
B10 M10 1.5 - 20 20 11 4 5 7 10 26
B12 M12 5.8 0.9 69 26 13 4.5 6 9.5 12 29
B16 M16 8.5 1.7 147 30 16 5.5 8 11 16 36
B20 M20 14.7 3.0 285 36 19 7 10 12.5 19 46
B24 M24 19.7 4.5 491 48 25 9 12 16 25 55

* Torque figures based on bolts / setscrews in an unlubricated condition.

Suitable for UPN / IPN type tapered flanges.

SKU B20S
Brand Lindapter
Shipping Weight 0.2040kg
Size M20
Material/finish Hot Dip Galvanized
Tail Length Short
