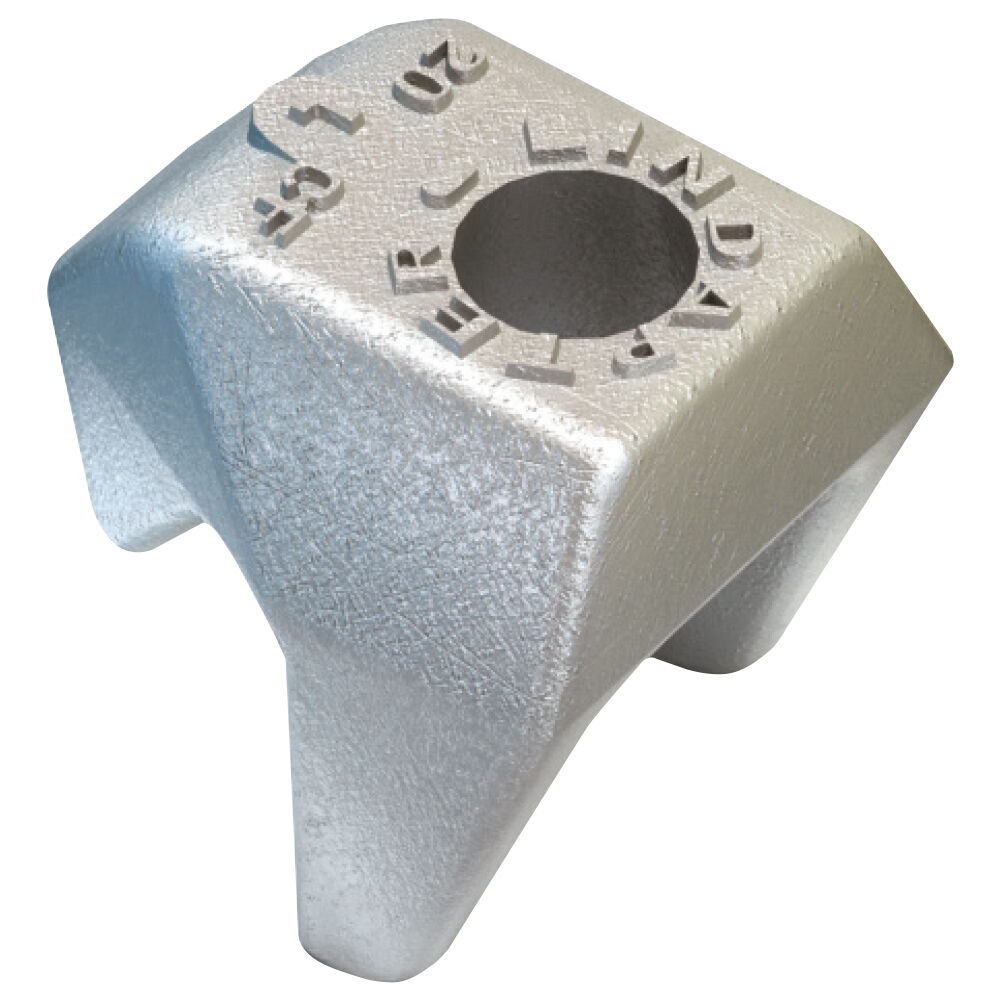

CF16 Lindapter - Type CF High Friction Clamp M16 Hot Dip Galvanized

$65.67Per: EACH


Size
Material/finish


The Type CF girder clamp is used to achieve a fast steelwork fixing connection where the flanges of steel beams, angles or channels are opposing each other. The high slip resistance clamp is designed to be used in a two clamp configuration and to hook over the edge of the flange. A bolt, threaded rod or other threaded item is used to connect the two clamps and complete the assembly. Type CF can also be combined with our other HSR girder clamp products to make connections from a flange edge to the flat face of a steel section. Manufactured from SG iron with a hot dip galvanised finish to provide high performance and anti-corrosion protection.

  • Hooks over flange edge to allow connection of opposing sections.
  • High slip resistance for tensile, frictional and combined load applications.
  • Suitable for parallel and tapered flanges up to and including 10°.
  • Lindapter recommends the use of DTI Washers conforming to EN14399-9 with the Type CF.

Technical Specification

    Safe Working Loads   Dimensions
Product Code Bolt 8.8 Z Tensile / 1 Bolt (FOS 5:1) Slip1) / 2 Bolts (FOS 2:1) Tightening Torque* Clamping Range V Y X T Width
      Painted Steelwork2) Galvanised Steelwork
    kN kN kN Nm mm mm mm mm mm
CF12 M12 8.5 3.4 3.9 90 6 - 13 32 14 21 - 29 46
CF212 M12 8.5 3.4 3.9 90 12 - 20 39 16 28 - 37 48
CF16 M16 16 8 10 240 8 - 16 44 18 25 - 33 56
CF216 M16 16 8 10 240 15 - 25 50 21 35 - 47 62
CF20 M20 26.3 13 16 470 10 - 19 53 22 30 - 41 65
CF220 M20 26.3 13 16 470 18 - 30 64 27 41 - 55 70
CF combinations with other Lindapter clamps
CF + A3) M12 5.8 0.9 0.9 69
CF + A3) M16 8.5 1.7 1.7 147
CF + A3) M20 14.7 3.0 3.0 285
CF + AF / AAF M12 8.5 3.4 3.9 90
CF + AF / AAF M16 16.0 8.0 10.0 240
CF + AF / AAF M20 26.3 13.0 16.0 470

1) Slip resistant values calculated against movement exceeding 0.1mm.

2) Shot blast and painted steelwork.

3) Also applies to Type B, Type LR, Type D2 and Type BR.

* Torque figures based on bolts / setscrews in an unlubricated condition.

  For Characteristic Resistances when designing a connection to Eurocode 3, please refer to DoC No.111

  For Characteristic Resistances when designing a connection to Eurocode 3, please refer to DoP No.011

SKU CF16
Brand Lindapter
Shipping Weight 0.4200kg
Size M16
Material/finish Hot Dip Galvanized
