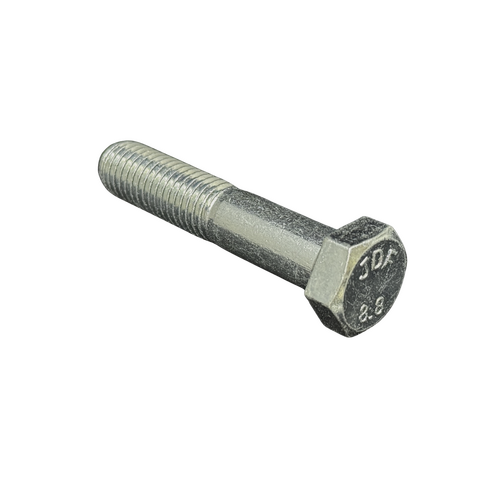

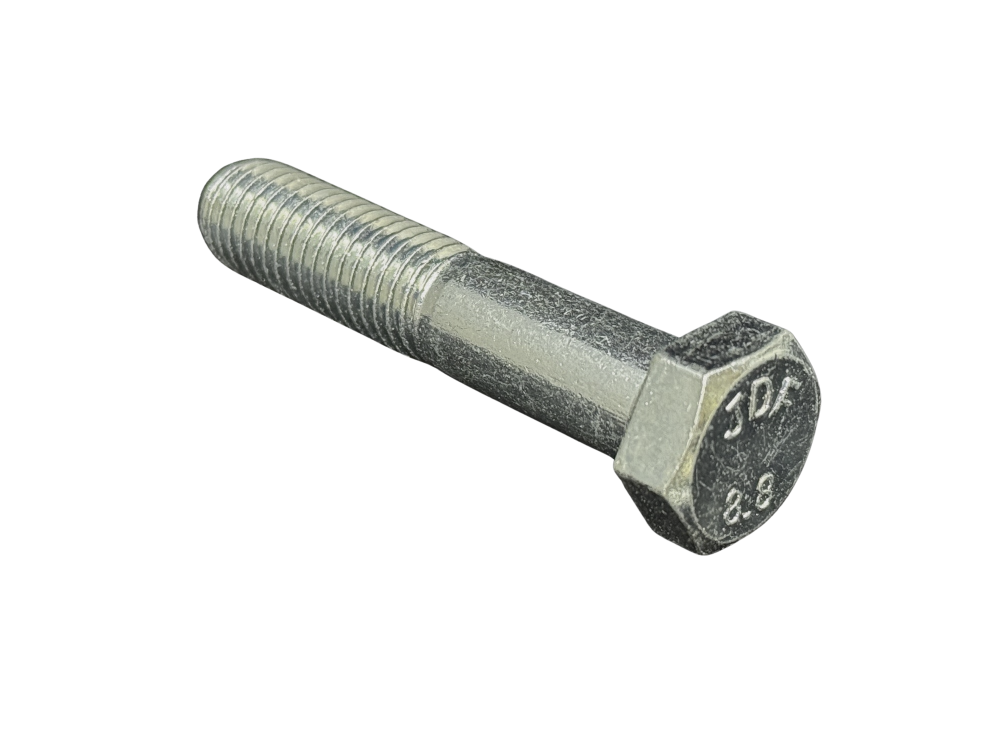

M12X190 Metric Coarse Hex Head Bolt AS1110.1 / ISO 4014 Class 8.8 Zinc Plated

$3.05Per: EACH
(Full Pack Contains: 1)

Buy In Bulk & Save!
Buy 2 to 2: Pay $8.12
Buy 3 to 4: Pay $3.39
Buy 5 to 9: Pay $3.05
Buy 10 to 24: Pay $2.71
Buy 25 to 49: Pay $2.46
Buy 50 or more: Pay $2.25


M12-1.75X190 mm (Partial Thread) ISO 4014 Metric 8.8 Hex Bolt Zinc CR+3 Pack of 10pcs price per Piece
SKU 470728
Brand Brighton Best
Shipping Weight 0.1830kg
Grade CLASS 8.8
Material HIGH TENSILE
Hardness 250 - 320 HV
Length 190mm
Coating Zinc Clear CR+3
Diameter M12
Thread Length Partially Threaded
Australian Standard AS1110.1
ISO Standard ISO 4014
DIN Standard ~DIN 931
Width Across Flats 18mm
Head Height 7.5mm
Tensile Strength (nominal) 800 N/mm²
Tightening Torque 93.0Nm
Thread Type Metric Coarse
Thread Pitch 1.75mm
