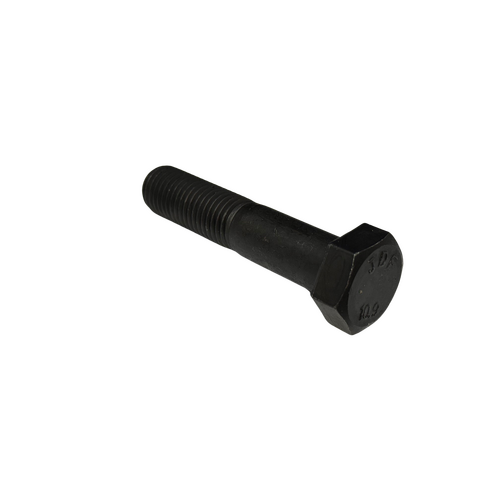

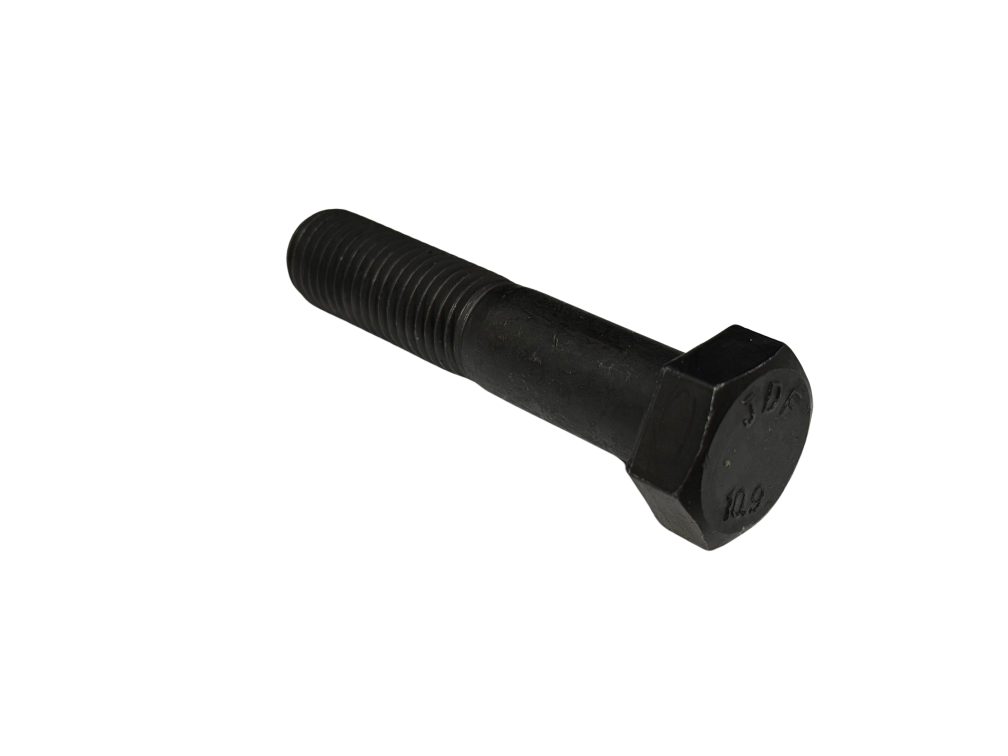

M20X200 Metric Coarse Hex Head Bolt AS1110.1 / ISO 4014 Class 10.9 Black

$8.29Per: EACH
(Full Pack Contains: 10)

Buy In Bulk & Save!
Buy 10 to 19: Pay $8.29
Buy 20 to 49: Pay $7.37
Buy 50 to 99: Pay $6.71
Buy 100 or more: Pay $6.15


M20-2.50X200 mm (Partial Thread) ISO 4014 Metric 10.9 Hex Bolt Plain Pack of 10pcs price per Piece
SKU 882252
Brand Brighton Best
Shipping Weight 0.5443kg
Grade CLASS 10.9
Material HIGH TENSILE
Hardness 320 - 380 HV
Length 200MM
Coating BLACK / PLAIN
Diameter M20
Thread Length Partially Threaded
Australian Standard AS1110.1
ISO Standard ISO 4014
DIN Standard ~DIN 931
Width Across Flats 30mm
Head Height 12.5mm
Tensile Strength (nominal) 1000 N/mm²
Tightening Torque 661.0Nm
Thread Type Metric Coarse
Thread Pitch 2.50mm
