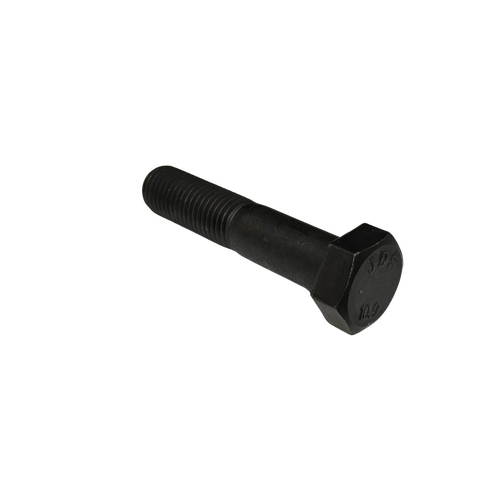

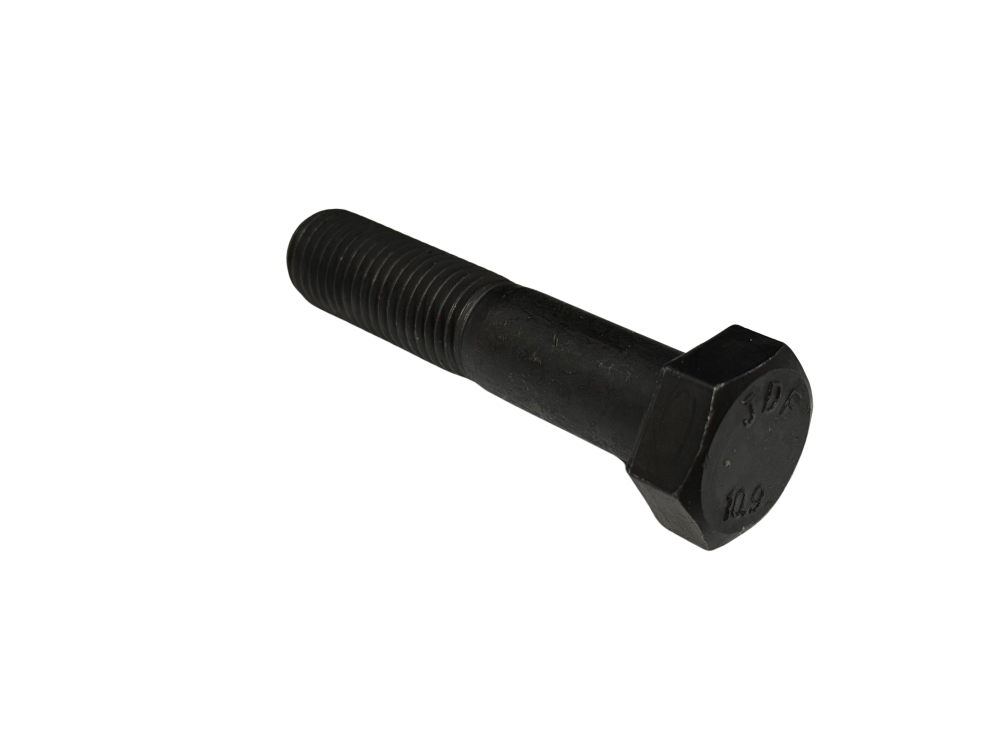

M24X140 Metric Coarse Hex Head Bolt AS1110.1 / ISO 4014 Class 10.9 Black

$7.58Per: EACH
(Full Pack Contains: 5)

Buy In Bulk & Save!
Buy 5 to 9: Pay $7.58
Buy 10 to 24: Pay $6.73
Buy 25 to 49: Pay $6.13
Buy 50 or more: Pay $5.62


M24-3.00X140 mm (Partial Thread) ISO 4014 Metric 10.9 Hex Bolt Plain Pack of 5pcs price per Piece
SKU 882280
Brand Brighton Best
Shipping Weight 0.5950kg
Grade CLASS 10.9
Material HIGH TENSILE
Hardness 320 - 380 HV
Length 140mm
Coating BLACK / PLAIN
Diameter M24
Thread Length Partially Threaded
Australian Standard AS1110.1
ISO Standard ISO 4014
DIN Standard ~DIN 931
Width Across Flats 36mm
Head Height 15mm
Tensile Strength (nominal) 1000 N/mm²
Tightening Torque 1136.0Nm
Thread Type Metric Coarse
Thread Pitch 3.00mm
