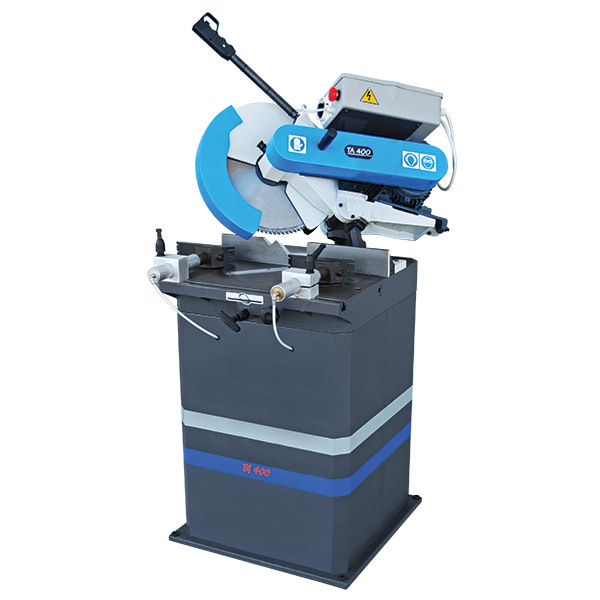

MACC 400MM 240V / 1H 3,000RPM NON FERROUS CUTTING SAW WITH PNEUMATIC VICE & COOLANT SPRAY

$6,995.00



Large and/or Heavy Item

  • Italian made quality, extra heavy-duty.
  • Compound mitre, non-ferrous metal cutting saw.
  • Designed for cutting aluminium, copper, brass etc.
  • Swivel head 45° right and left.
  • Mitre head 45° left.
  • Trigger switch operation.
  • Twin manual sliding vices with teflon jaws.
  • Includes Stand
  • Fully recirculating coolant system.
  • As per TA400, with additional pneumatic features.
    1. Two pneumatic spring return vices, automatically clamps the material when the trigger switch is pulled.
    2. Supply of cutting fluid to the blade is also activated.
    3. Material is then released upon return of cutting head, & fluid mist de-activated.
  • Safety emergency stop switch.
  • 12 months warranty.
  • Blade sold separately.
  • Compressor required to power vice.



  • Motor: 3hp Single Phase 240V
  • Blade Speed: Single Speed 3000rpm
  • Blade Size: 400mm
  • Blade Bore: 32mm
  • Weight: 190kg


90° Cutting Capacity:



  • Solid Round: 60mm
  • Hollow Round: 140mm
  • Square: 110mm
  • Rectangle
SKU MC-TA400P-1
Shipping Weight 175.0000kg
Shipping Width 0.730m
Shipping Height 0.750m
Shipping Length 0.950m
