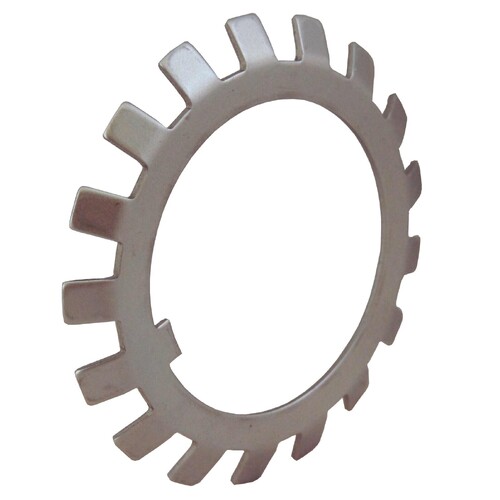

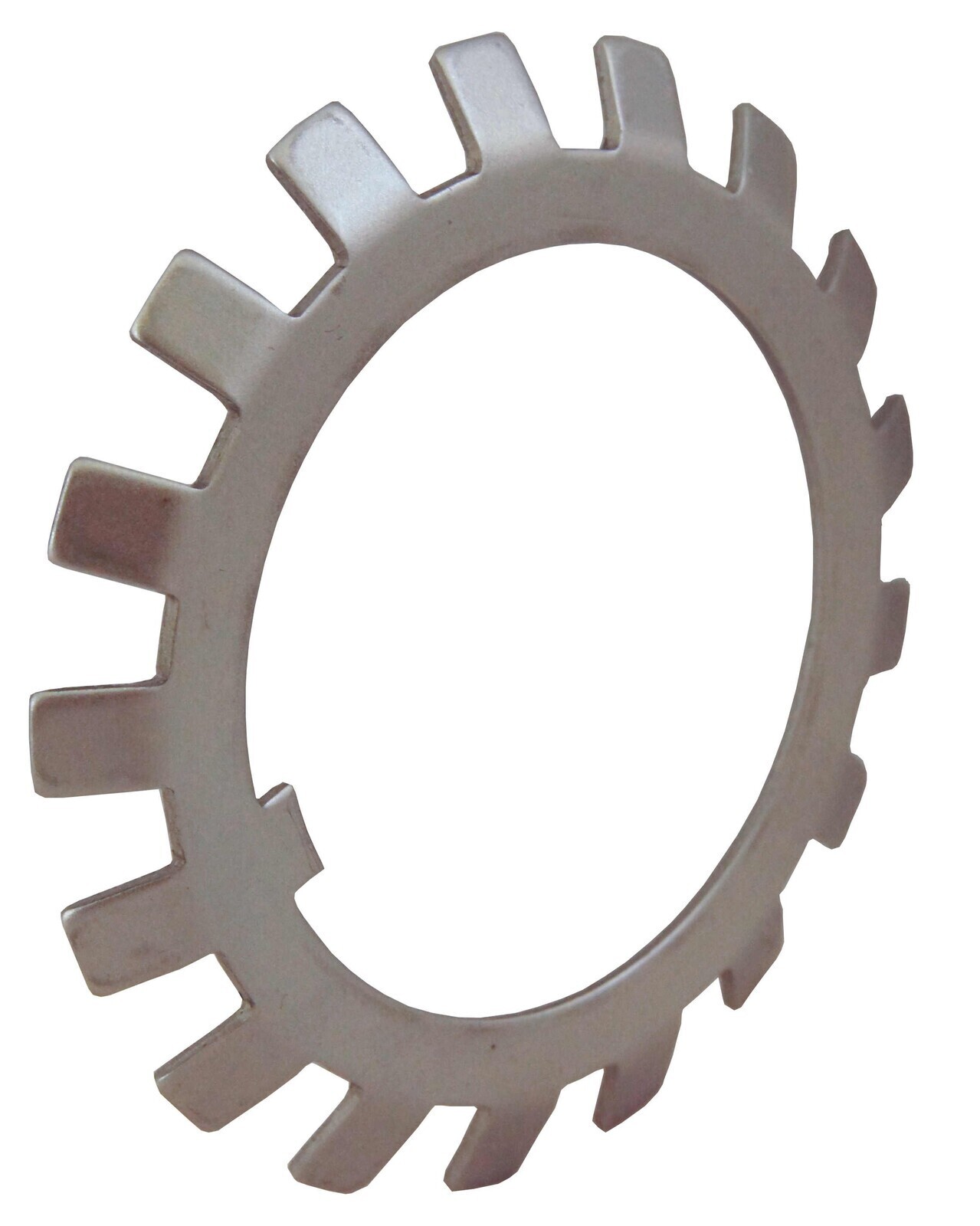

MB07 Bearing Tab Washer Metric 35mm

$2.86



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Express Shipping – StarTrack Courier service (Check StarTrack for transit times to your location)

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU MB07
Shipping Weight 0.0104kg
No. Of Tangs 15
(B) Material Thickness (mm) 1.2
Norm DIN 5406
Max. Operating Temperature (deg. C) +150°C
(M) Inside Dimension Under Inner Tab (mm) 32.5
(d¹) Side Face Diameter (mm) 44
(d²) Outside Ø (mm) 57
(f) Width Of Inner Tab (mm) 6
(d) Bore Diameter (mm) 35
Min. Operating Temperature (deg. C) -30°C
