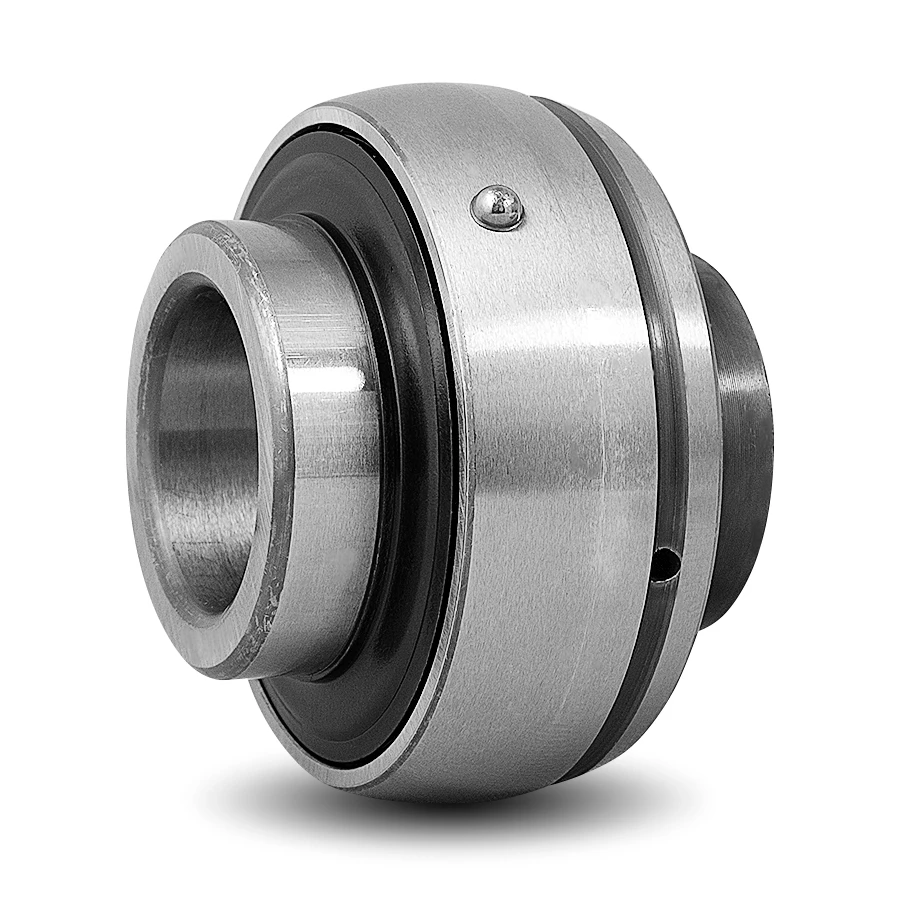

NA205-16TRL Economy Radial Insert Ball Bearing Triple Lip Seal (1 Inch shaft)

$28.91



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Express Shipping – StarTrack Courier service (Check StarTrack for transit times to your location)

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
UG-Series Ball Bearings (Also known as NA or UEL or EW series) feature a locking collar which has a counterbored recess made purposely eccentric to the collar bore. When assembled on the shaft, this eccentric recess engages, or mates, with an eccentric cam end of a bearing’s inner ring. The collar is engaged on the inner cam of the bearing. This assembly grips the shaft tightly with a positive binding action that increases with use. No adjustments of any kind are necessary. The collar setscrew provides supplementary locking.
SKU NA205-16TRL-ECO
Brand Craft
Shipping Weight 0.2500kg
Norm. DIN 626-1
Lifetime Lubricated Yes
Rolling Element Material Rolling Bearing Steel
(D) Outside Ø (mm) 52
Grade Economy
(l) Overall Width (mm) 44.4
(B) Width Of Inner Ring (mm) 34.9
Min. Operating Temperature (deg. C) ­20°C
Type Of Lubrication Grease
Ring Material Rolling Bearing Steel
(d) Inside Ø (mm) 25.4 (1")
Outer Race Spherical
(C) Width Of Outer Ring (mm) 17
Max. Operating Temperature (deg. C) +120°C
Cage Material Sheet Steel
Seal Triple lip seal
Bore Cylindrical
Shaft Fastening Eccentric Collar
Extended Inner Ring Both Sides
