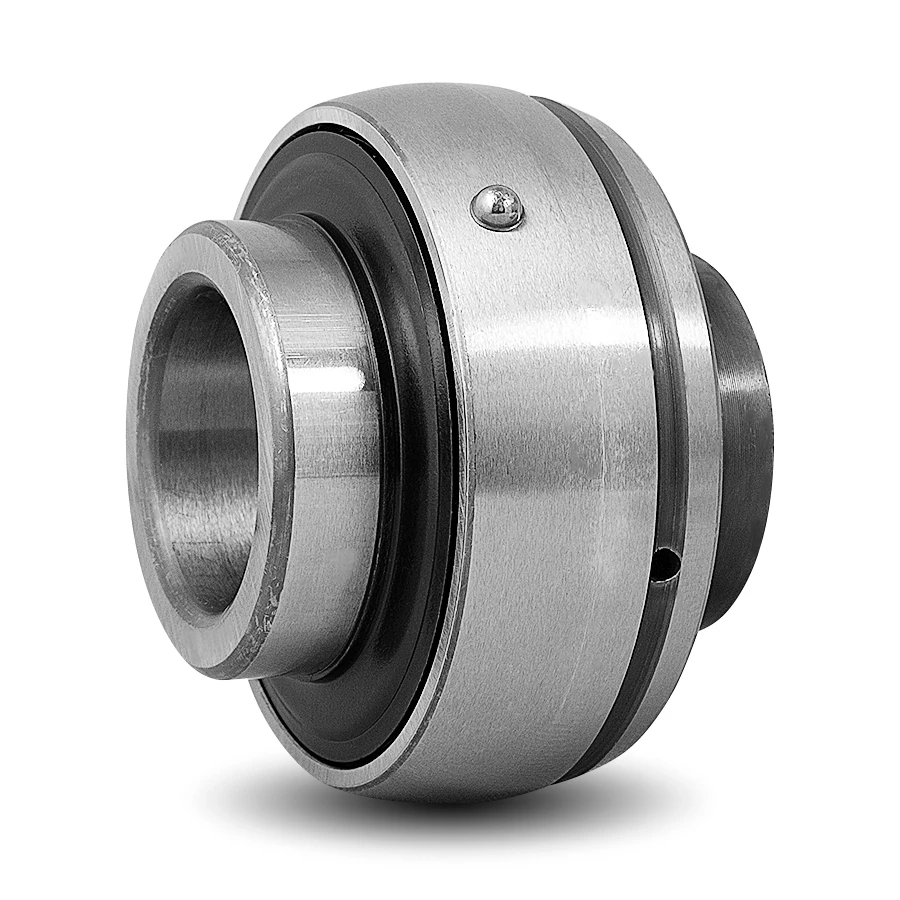

NA209 Economy Radial Insert Ball Bearing (45mm shaft)

$51.96Per: EACH



UG-Series Ball Bearings (Also known as NA or UEL or EW series) feature a locking collar which has a counterbored recess made purposely eccentric to the collar bore. When assembled on the shaft, this eccentric recess engages, or mates, with an eccentric cam end of a bearing’s inner ring. The collar is engaged on the inner cam of the bearing. This assembly grips the shaft tightly with a positive binding action that increases with use. No adjustments of any kind are necessary. The collar setscrew provides supplementary locking.
SKU NA209-ECO
Brand Craft
Shipping Weight 0.8500kg
Lifetime Lubricated Yes
Shaft Fastening Eccentric Collar
(l) Overall Width (mm) 56.3
Outer Race Spherical
Extended Inner Ring Both Sides
(B) Width Of Inner Ring (mm) 42.8
(C) Width Of Outer Ring (mm) 22
Norm. DIN 626-1
Min. Operating Temperature (deg. C) ­20°C
Max. Operating Temperature (deg. C) +120°C
Grade Economy
Type Of Lubrication Grease
Cage Material Sheet Steel
Rolling Element Material Rolling Bearing Steel
Ring Material Rolling Bearing Steel
Seal 2 Piece Seal
(D) Outside Ø (mm) 85
(d) Inside Ø (mm) 45
Bore Cylindrical
