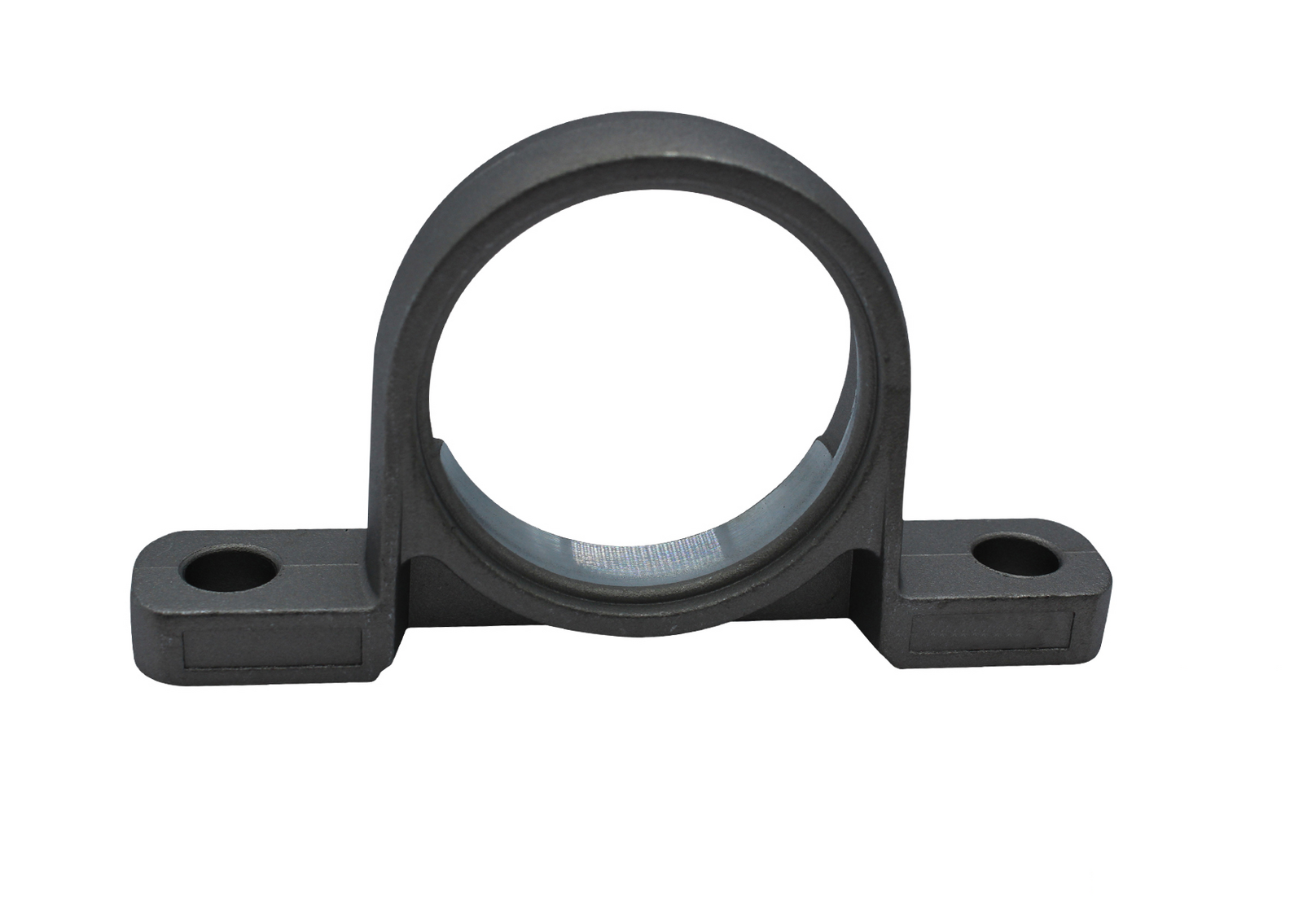

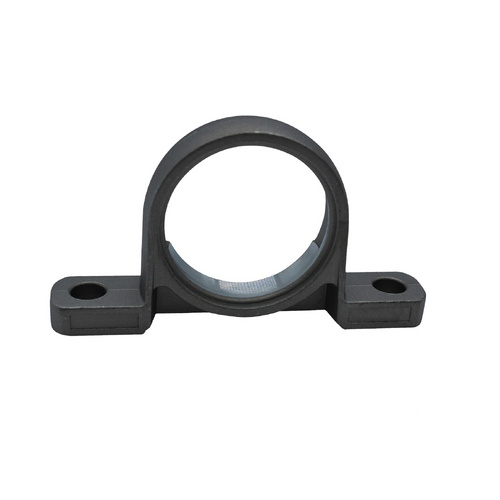

P001 Premium Silver Series Pillow Block Bearing Housing

$15.93



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Express Shipping – StarTrack Courier service (Check StarTrack for transit times to your location)

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU P001-PRM
Brand Asahi
Shipping Weight 0.0380kg
(h²) Overall Height (mm) 38
Bolt Size M6 or 1/4"
(l) Length (mm) 71
Housing Type Pillow Block Housing - Silver Series
Grade Premium
(h¹) Height Of Foot (mm) 6
(j) Hole Centres (mm) 56
Number Of Mounting Holes 2
Min. Operating Temperature (deg. C) ­20°C
(h) Height To Centre Of Shaft (mm) 19
(a) Width (mm) 16
Housing Material Zinc Alloy
Max. Operating Temperature (deg. C) +120°C
