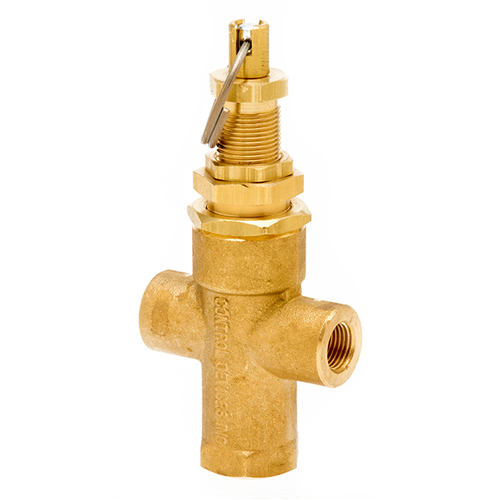

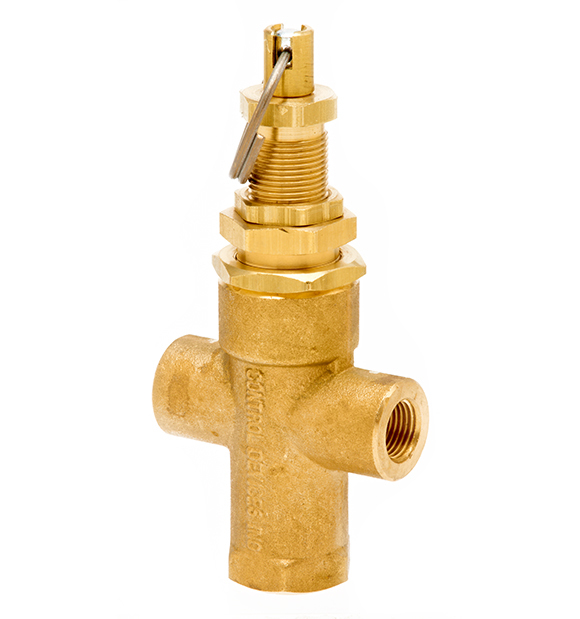

04-P25 P25 Pilot Valve

$138.17



The P25 unloader is an industry standard. Details of construction include a precision machined, forged brass body, brass adjustment screws, and stainless steel ball spring. Valve cut-in and cut-out pressures are factory set per customer specifications (if no specifications are given, valve is set at standards settings of 95-115 psi). Valve is also field adjustable. Valve includes a mounting boss, tapped with a 3/8-16 UNC thread, a ¼ NPT inlet and a 1/8 NPT outlet. Valve comes standard with unloading sleeve for piston engine warm up. Options include a toggle for one-hand unloading, a lock-out thumbscrew for dual control systems, and a¼ NPT nipple installed into the inlet port. Maximum cut-out pressure 250 psi, minimum cut-out pressure 60 psi. Maximum temperature 350°F.

SKU 04-P25
