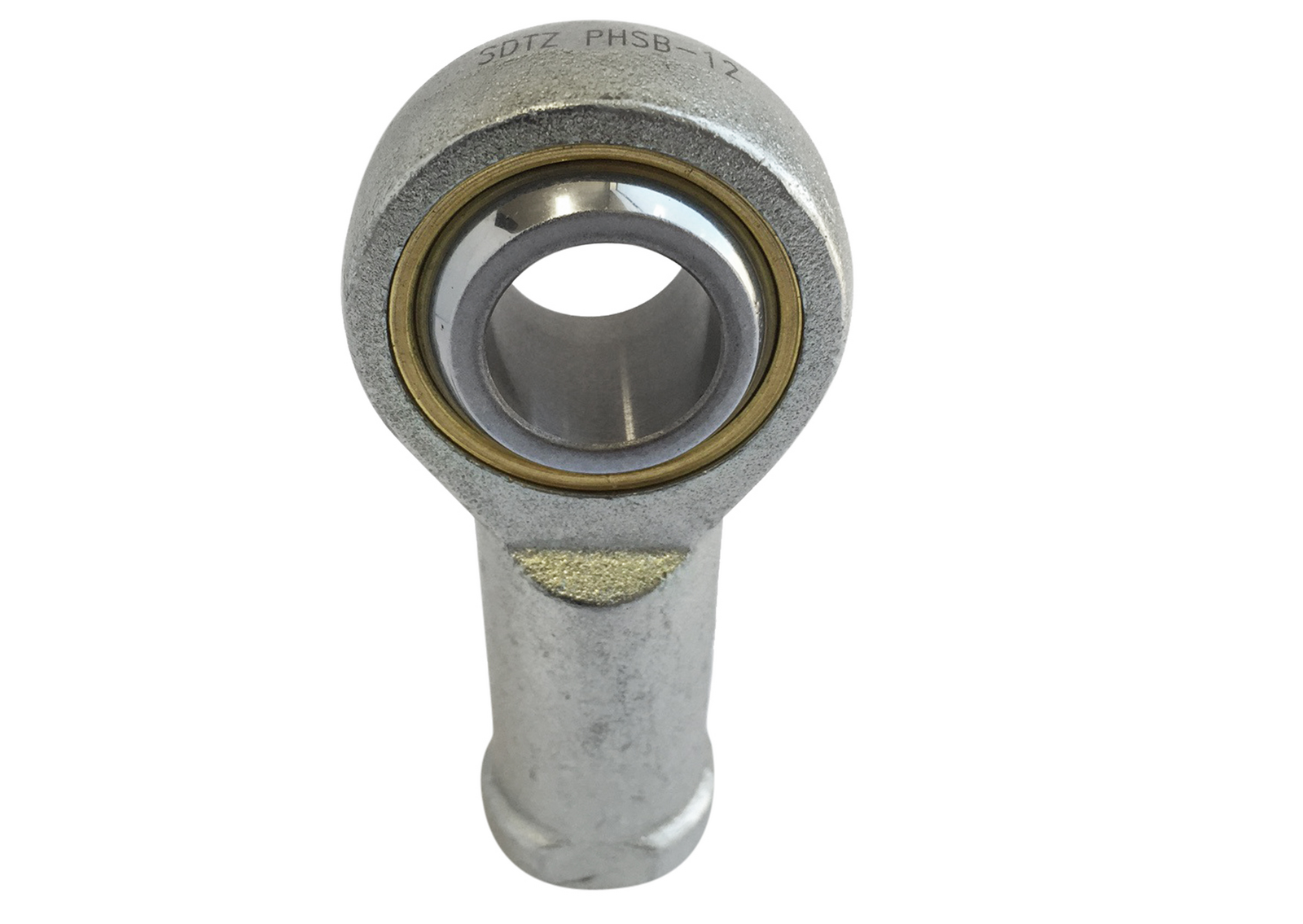

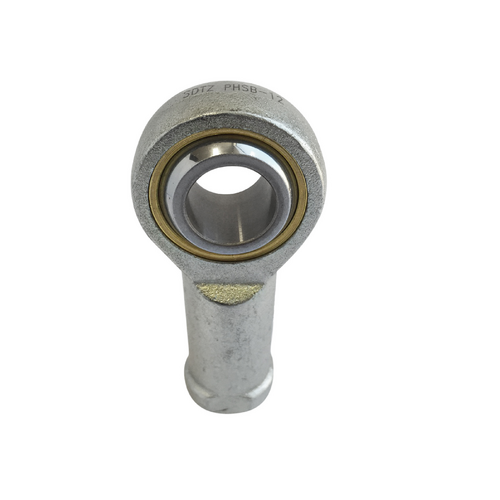

PHS-25L Economy Rod End Metric Female LH 25mm Bore (M24x2)

$120.68



SKU PHS-25L-SDTZ
Brand SDTZ
Shipping Weight 0.7500kg
Grade Economy
(d) Inside Ø (mm) 25
(B) Width (mm) 31
Seal Open
Ring Material Rolling Bearing Steel
Type Of Lubrication Oiled
Lifetime Lubricated No
Max. Operating Temperature (deg. C) +120°C
Min. Operating Temperature (deg. C) -30°C
Contact Surface Steel/Bronze
(l) Length (mm) 124
(d²) Outside Ø (mm) 60
(c¹) Width (mm) 22
(G) Thread M24X2
