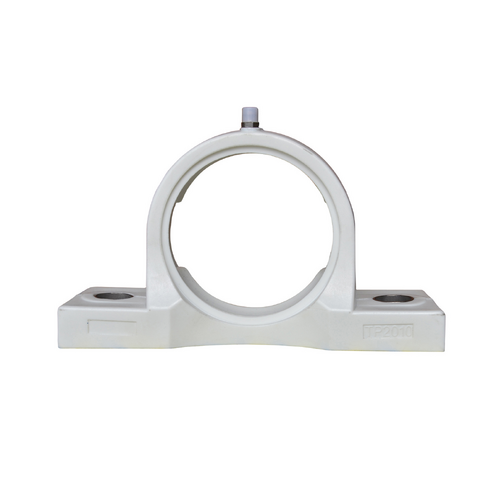

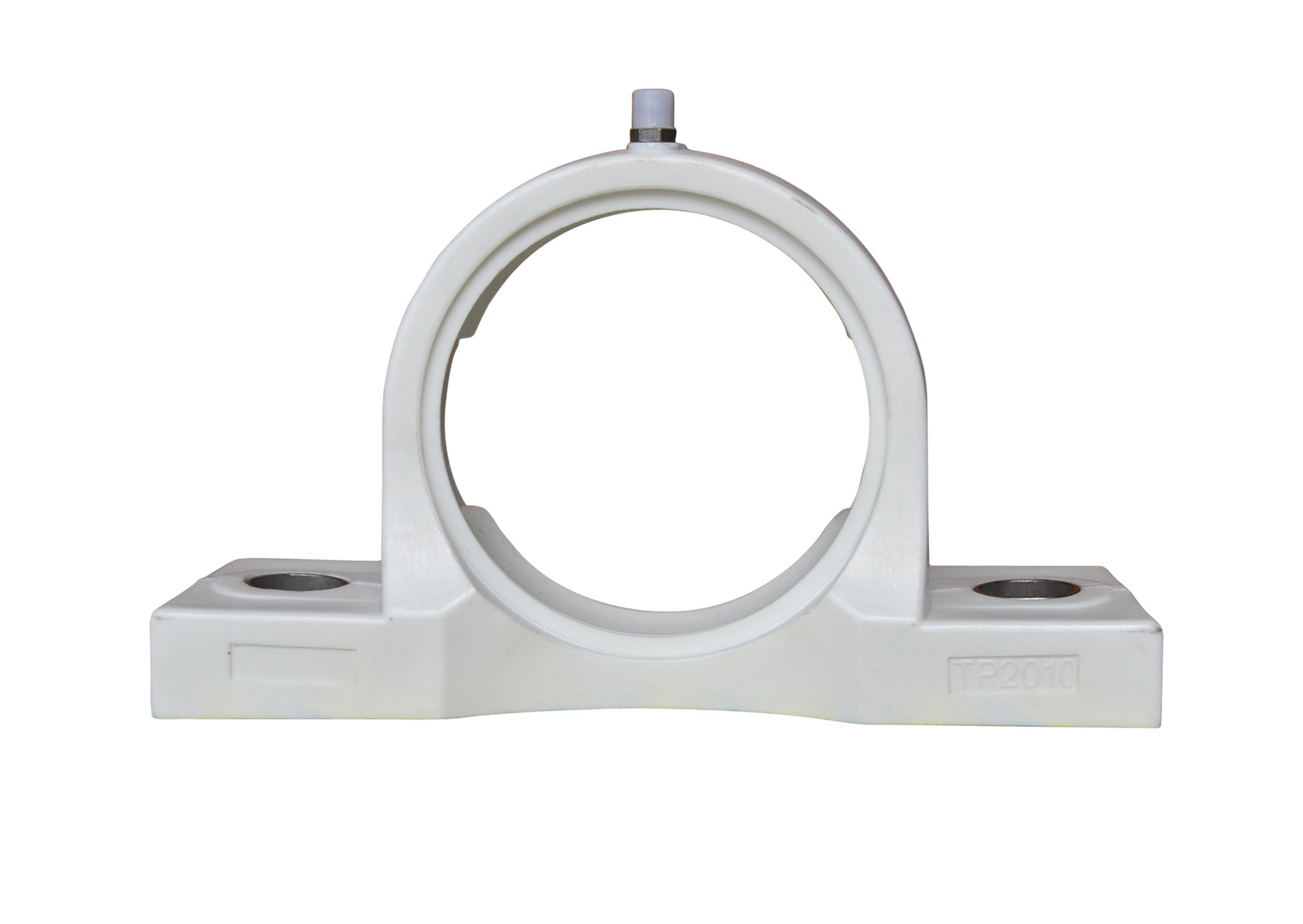

PL-P210 Economy Thermoplastic Pillow Block Bearing Housing incl. End Cap

$57.59



SKU PL-P210-ECO
Brand NBR
Shipping Weight 1.6000kg
Grade Economy
Max. Operating Temperature (deg. C) +80°C
Min. Operating Temperature (deg. C) ­12°C
Housing Type Pillow Block Housing
Housing Material Thermoplastic
Number Of Mounting Holes 2
(l) Length (mm) 206
(a) Width (mm) 60
(j) Hole Centres (mm) 159
Bolt Size M16 or 5/8"
(h) Height To Centre Of Shaft (mm) 57.2
(h¹) Height Of Foot (mm) 21
(h²) Overall Height (mm) 114
