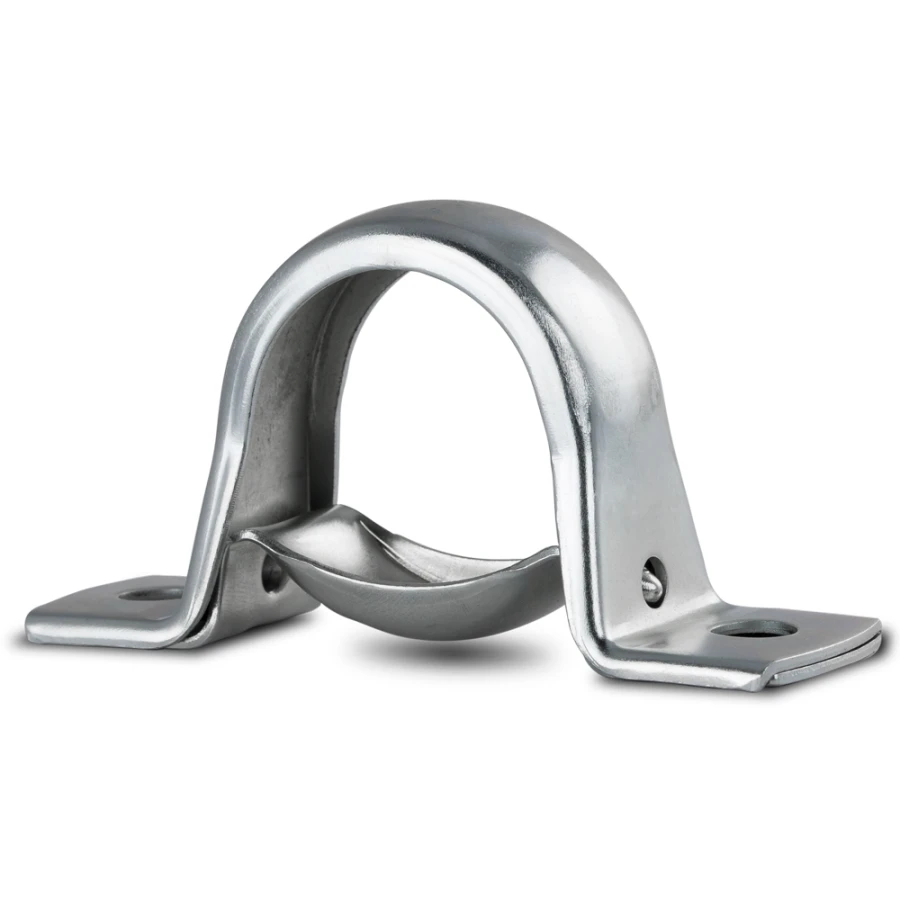

PP203 Economy Pillow Block Bearing Housing

$4.59



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Express Shipping – StarTrack Courier service (Check StarTrack for transit times to your location)

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU PP203-ECO
Brand NBR
Shipping Weight 0.0600kg
(h²) Overall Height (mm) 43.8
Bolt Size M8 or 5/16"
(l) Length (mm) 86
Housing Type Pillow Block Housing
Grade Economy
(h¹) Height Of Foot (mm) 3.2
(j) Hole Centres (mm) 68
Number Of Mounting Holes 2
Min. Operating Temperature (deg. C) ­20°C
(h) Height To Centre Of Shaft (mm) 22.2
(a) Width (mm) 25
Housing Material Sheet Steel Zinc Plated
Max. Operating Temperature (deg. C) +120°C
