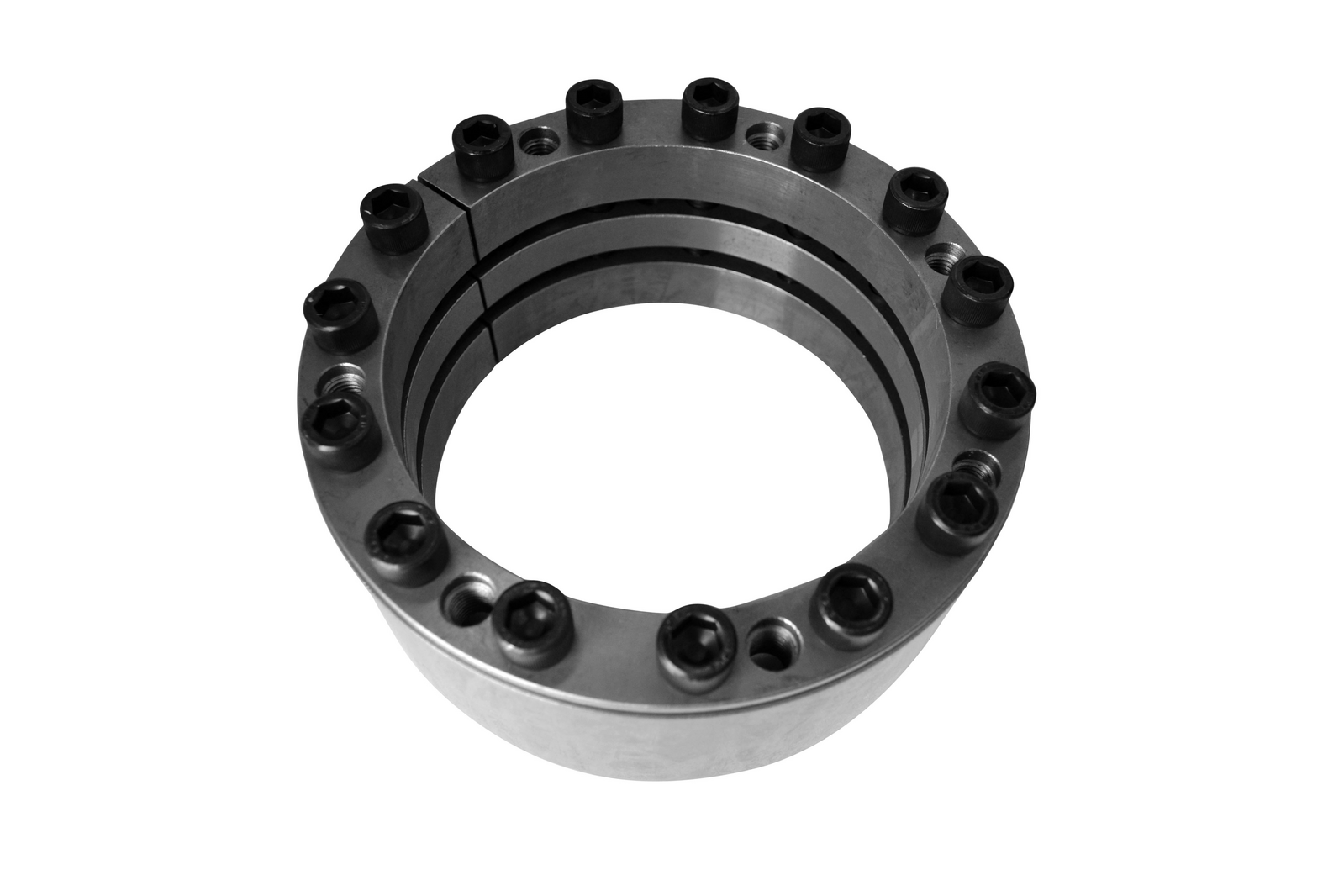

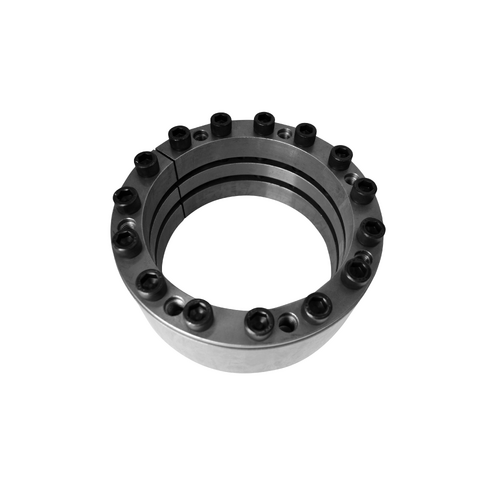

25X55mm Type 19 Locking Assembly Self Centering

$110.56
RRP $134.60
SAVE $24.04 (18%)



REACH19-25 Locking Assembly Type 19 25mm x 55mm - Self Centering

SKU REACH19-25
(d) Inside Ø (mm) 25
(D) Outside Ø (mm) 55
Dimension L¹ (mm) 32
Dimension L² (mm) 40
(L) Assembled Length (mm) 46
Locking Unit Type Type 19
No. Of Clamping Screws 6
Screw Size M6X35
Screw Tightening Torque (Nm) 17
