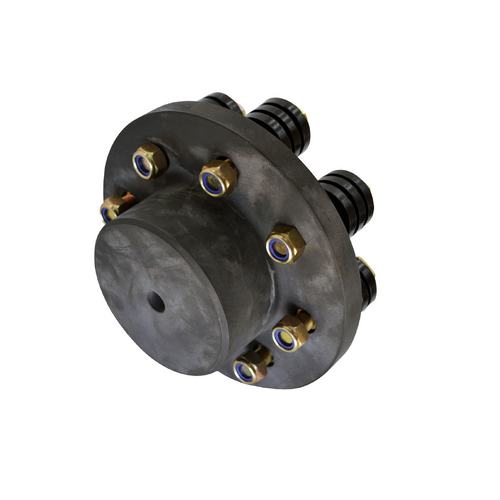

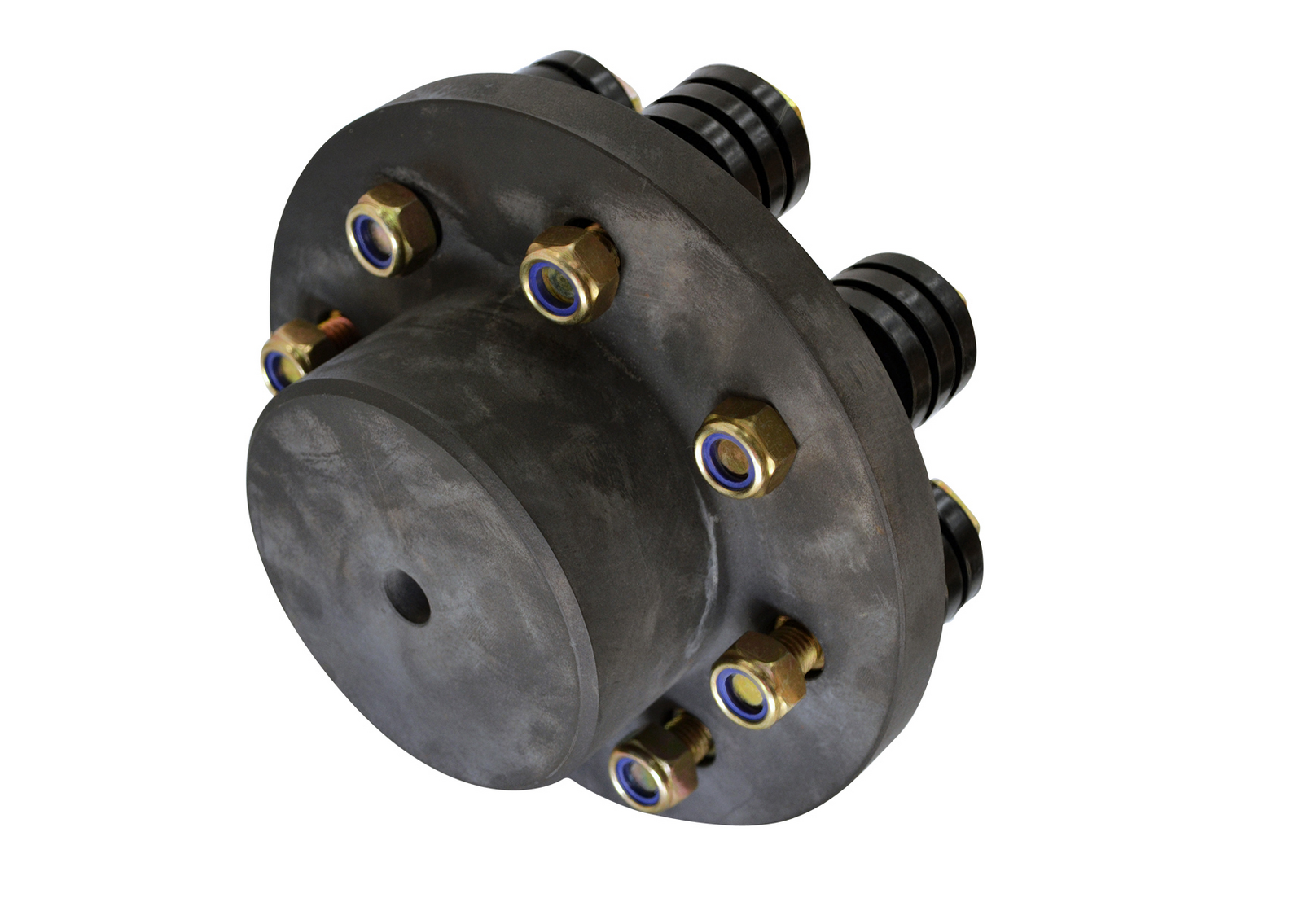

Cone Ring Coupling MC058-1 Pin Half incl. Pins, Nuts & Rubbers Pilot Bore

$390.37



Cone Ring Couplings are based on a time proven design. The coupling consists of two flanges interlocked with a number of elements, depending on the coupling size. The Cone Ring Coupling’s unique flexible element comprises tapered rubber rings mounted on steel pins. The rubber rings absorb commonly encountered misalignment, shock and vibration. The Cone Ring Coupling is as popular as ever for its ease of maintenance. No Lubrication is required. The Pin and Rubber design ensures trouble free maintenance, as they can be removed and changed without the need to take the coupling off the shafts. The flanges are high-grade cast iron; the pins are hexagonal steel bar; and the rings are available in synthetic rubber and polyurethane.

SKU KX058-1
Shipping Weight 5.1000kg
Bore PILOT BORE
(D) Outside Ø (mm) 193
Max. Bore (mm) 65
No. Of Pins (Rubbers) 8 (24)
Pin/Rubber Size 3 (GC1-3/4"-3)
Dimension H (mm) 106
Dimension L (mm) 139
Dimension M (mm) 3
Dimension R (mm) 17
Dimension T (mm) 68
