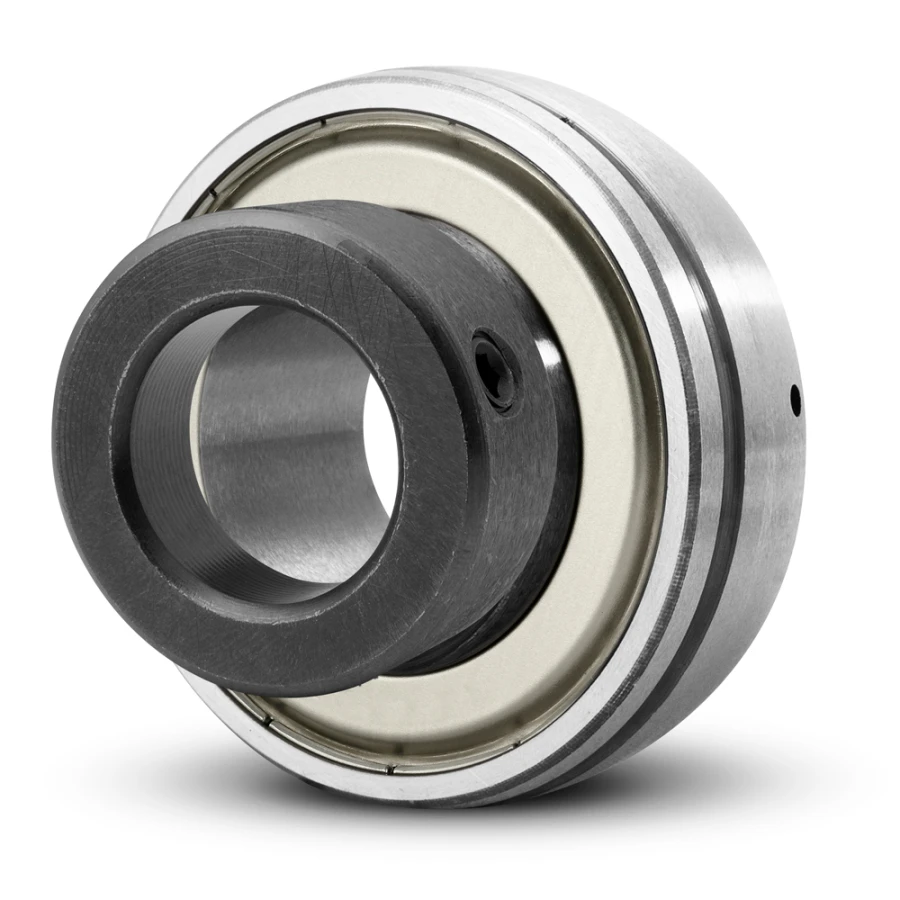

SA206 Economy Radial Insert Ball Bearing (30mm shaft)

$27.19



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Express Shipping – StarTrack Courier service (Check StarTrack for transit times to your location)

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
KH-Series Ball Bearings (Also known as SA or AEL or EN series) feature a locking collar which has a counterbored recess made purposely eccentric to the collar bore. When assembled on the shaft, this eccentric recess engages, or mates, with an eccentric cam end of a bearing’s inner ring. The collar is engaged on the inner cam of the bearing. This assembly grips the shaft tightly with a positive binding action that increases with use. No adjustments of any kind are necessary. The collar setscrew provides supplementary locking.
SKU SA206-ECO
Brand NBR
Shipping Weight 0.3000kg
Norm. DIN 626-1
Lifetime Lubricated Yes
Rolling Element Material Rolling Bearing Steel
(D) Outside Ø (mm) 62
Grade Economy
(l) Overall Width (mm) 35.7
(B) Width Of Inner Ring (mm) 23.8
Min. Operating Temperature (deg. C) ­20°C
Type Of Lubrication Grease
Ring Material Rolling Bearing Steel
(d) Inside Ø (mm) 30
Outer Race Spherical
(C) Width Of Outer Ring (mm) 16
Max. Operating Temperature (deg. C) +120°C
Cage Material Sheet Steel
Seal 2 Piece Seal
Bore Cylindrical
Shaft Fastening Eccentric Collar
Extended Inner Ring One Side
