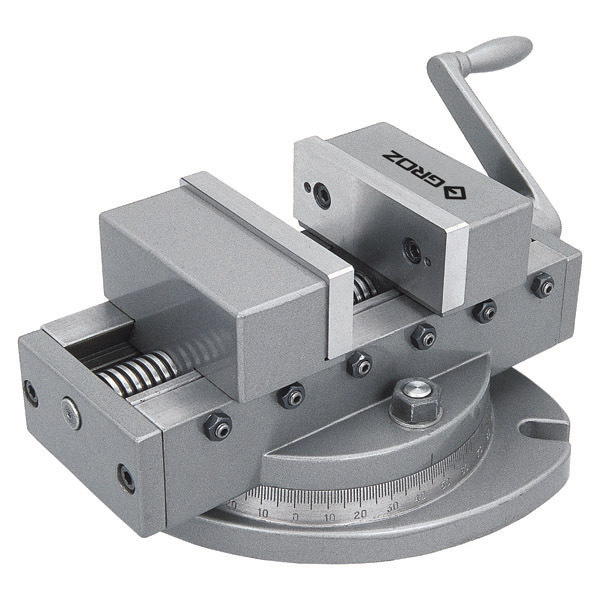

SCV/SP/100 Groz 100mm Super Precision Swivel Self Centering Machine Vice

$853.60Per: EACH



Large and/or Heavy Item

The Self Centring Vice allows for accurate centring of jobs, automatically. The vice is especially useful in applications where the same operation is to be performed on workpieces of varying sizes.
The special design allows accurate setting up of jobs with only a single machine setting. Centric clamping is particularly useful in milling, slot and groove cutting of all kinds.
Manufactured from hi-tensile cast iron with fully hardened and ground tool steel jaws, the vice has opposite threads for quick and accurate centring.
Fully graduated 360° swivel base allows the vice to be set at any angle along the vertical axis.
A milled slot in the vice base allows for accurate location of the vice on the machine table using rectangular locating nuts.
''Hold Down'' slots provide secure clamping of the vice on the work table.
Code: SCV/SP/100
Jaw Width: 100mm
Jaw Opening: 100mm
Jaw Depth: 38mm
Net Weight: 14.3kg
SKU GZ-35040
Barcode # 8901486350400
Brand Groz
Shipping Weight 14.5560kg
Shipping Width 0.195m
Shipping Height 0.160m
Shipping Length 0.275m
