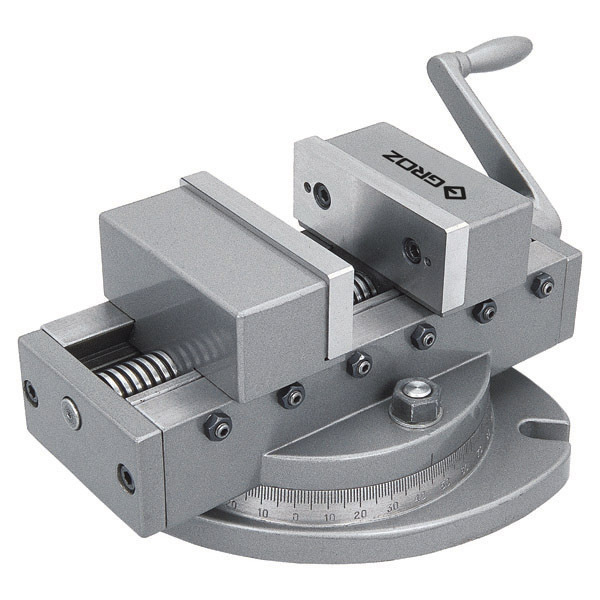

SCV/SP/150 Groz 150mm Super Precision Swivel Self Centering Machine Vice

$1,403.38Per: EACH



Large and/or Heavy Item

The Self Centring Vice allows for accurate centring of jobs, automatically. The vice is especially useful in applications where the same operation is to be performed on workpieces of varying sizes.
The special design allows accurate setting up of jobs with only a single machine setting. Centric clamping is particularly useful in milling, slot and groove cutting of all kinds.
Manufactured from hi-tensile cast iron with fully hardened and ground tool steel jaws, the vice has opposite threads for quick and accurate centring.
Fully graduated 360° swivel base allows the vice to be set at any angle along the vertical axis.
A milled slot in the vice base allows for accurate location of the vice on the machine table using rectangular locating nuts.
''Hold Down'' slots provide secure clamping of the vice on the work table.
Code: SCV/SP/150
Jaw Width: 150mm
Jaw Opening: 150mm
Jaw Depth: 45mm
Net Weight: 36.0kg
SKU GZ-35045
Barcode # 8901486350453
Brand Groz
Shipping Weight 37.0000kg
Shipping Width 0.195m
Shipping Height 0.160m
Shipping Length 0.275m
