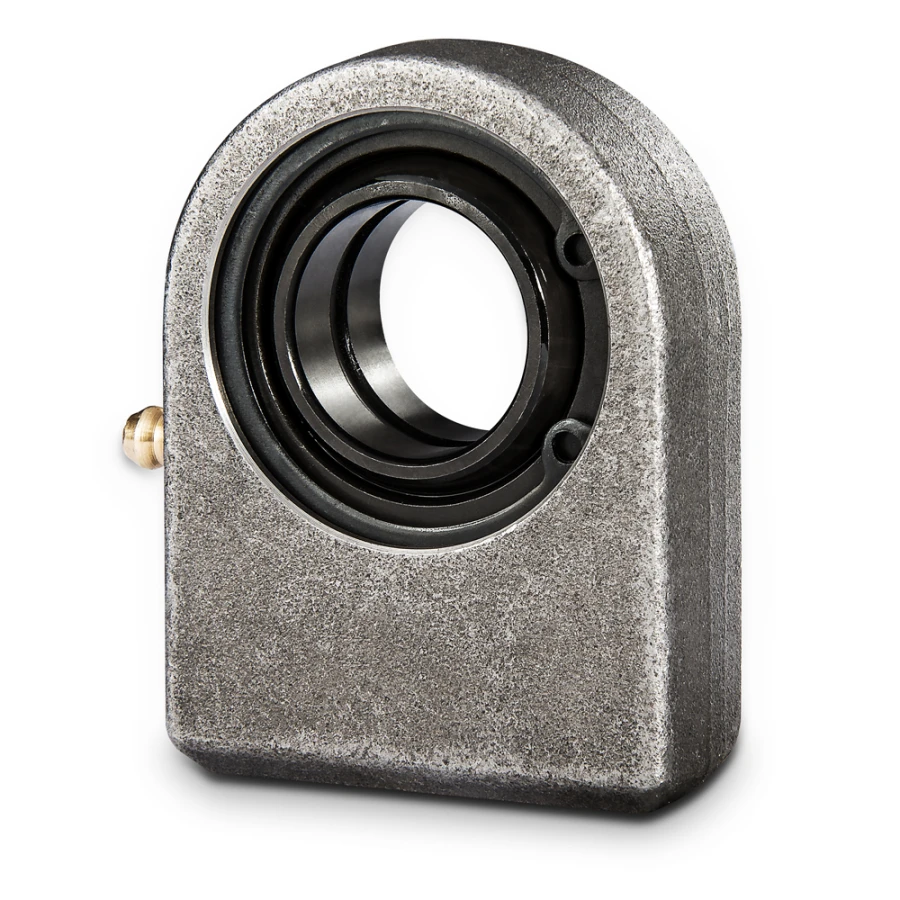

SF90ES LS Hydraulic Weld-on Rod End (90mm)

$1,052.27



Large and/or Heavy Item

SKU SF90ES-SDTZ
Shipping Weight 23.5000kg
Shipping Width 0.300m
Shipping Height 0.150m
Shipping Length 0.200m
Shipping Cubic 0.009000000m3
Grade Economy
(d) Inside Ø (mm) 90
Seal Open
Ring Material Rolling Bearing Steel
Type Of Lubrication Oiled
Max. Operating Temperature (deg. C) +200°C
Min. Operating Temperature (deg. C) -60°C
(B) Width Of Inner Ring (mm) 60
Contact Surface Steel/Steel
(l) Length (mm) 263
(d²) Outside Ø (mm) 226
(c¹) Width (mm) 65
Mounting Welded - Rectangular
Norm DIN ISO 12240-4
