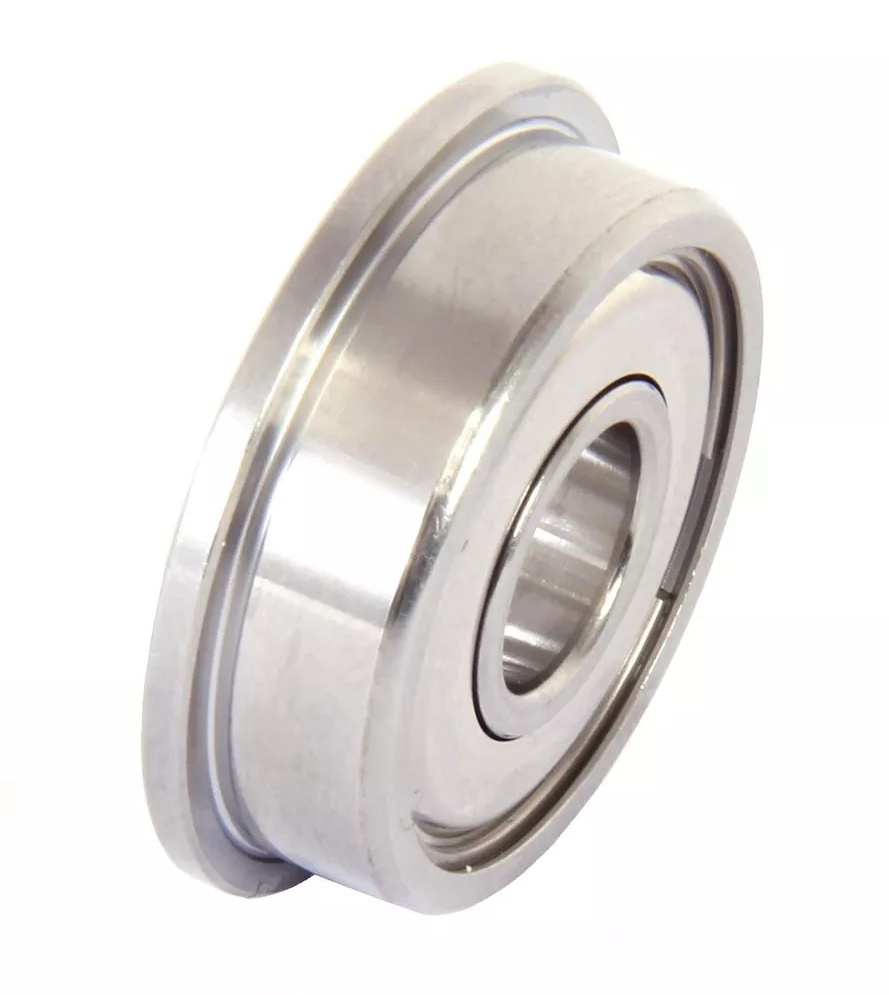

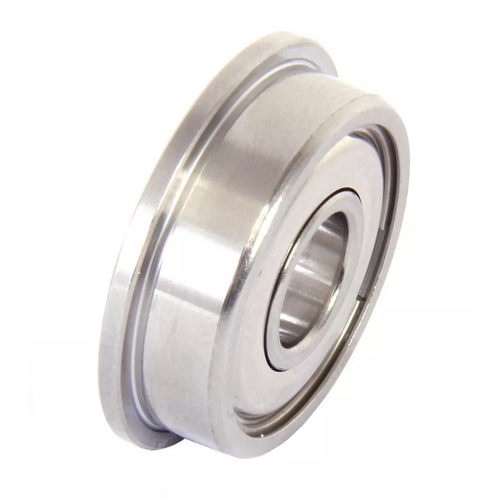

SFR4ZZ EZO Deep Groove Ball Bearing Inch Metal Shields Flanged Stainless Steel (1/4x5/8x0.196/0.690)

$33.34Per: EACH



Deep Groove Ball Bearings
Deep groove ball bearings are the most common type of rolling bearing. They have deep raceway grooves on both the inner and outer rings, which allow them to support both radial and axial (thrust) loads in both directions. Their simple design, low friction, and high-speed capability make them widely used in various applications, from electric motors to automotive components.

Key Features:

  • Simple, robust design with deep raceway grooves

  • Capable of handling radial and axial loads in both directions

  • Low friction and suitable for high-speed operation

  • Low maintenance and long service life

  • Available in open, shielded, or sealed configurations

  • Can be supplied with different lubrication options

  • Interchangeable and easy to mount or replace

  • Commonly used in electric motors, pumps, gearboxes, and appliances

SKU SFR4ZZ
Brand EZO
Grade Premium
Bore Cylindrical
Radial Internal Clearance CN (Normal)

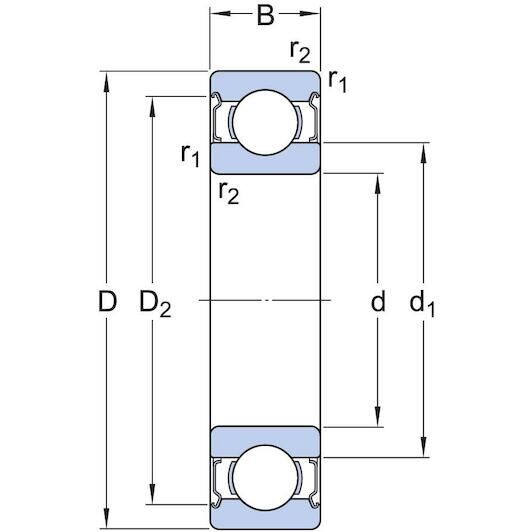

(d) Inside Ø (mm) 6.35 (1/4")
(D) Outside Ø (mm) 15.875 (5/8")
(B) Width (mm) 4.9784 (0.196")
Precision Class P0 (Normal Precision)
Speed Rating V (Normal)
Seal ZZ - Metal Shields on both sides
Ring Material Stainless Steel
Rolling Element Material Stainless Steel
Cage Material Stainless Steel
Type Of Lubrication Grease
Lifetime Lubricated Yes
Max. Operating Temperature (deg. C) +120°C
Min. Operating Temperature (deg. C) -­20°C
